Recycle unit:

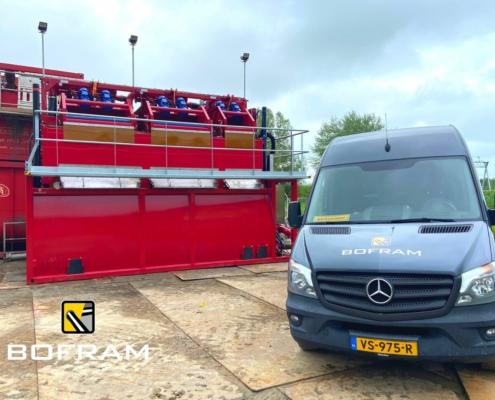

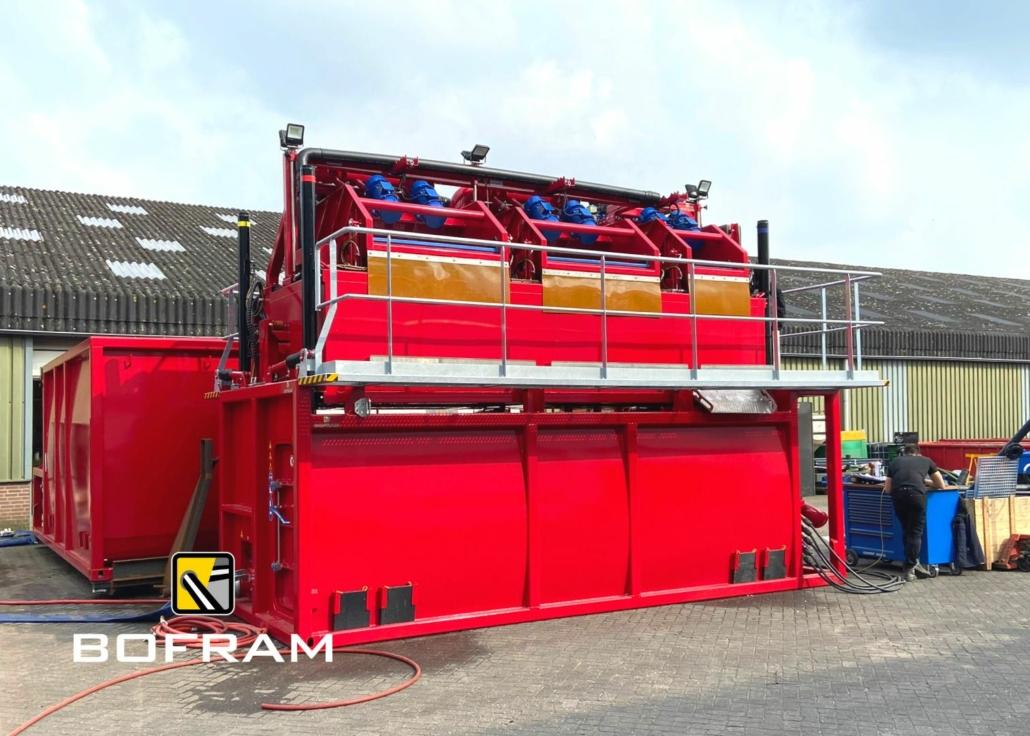

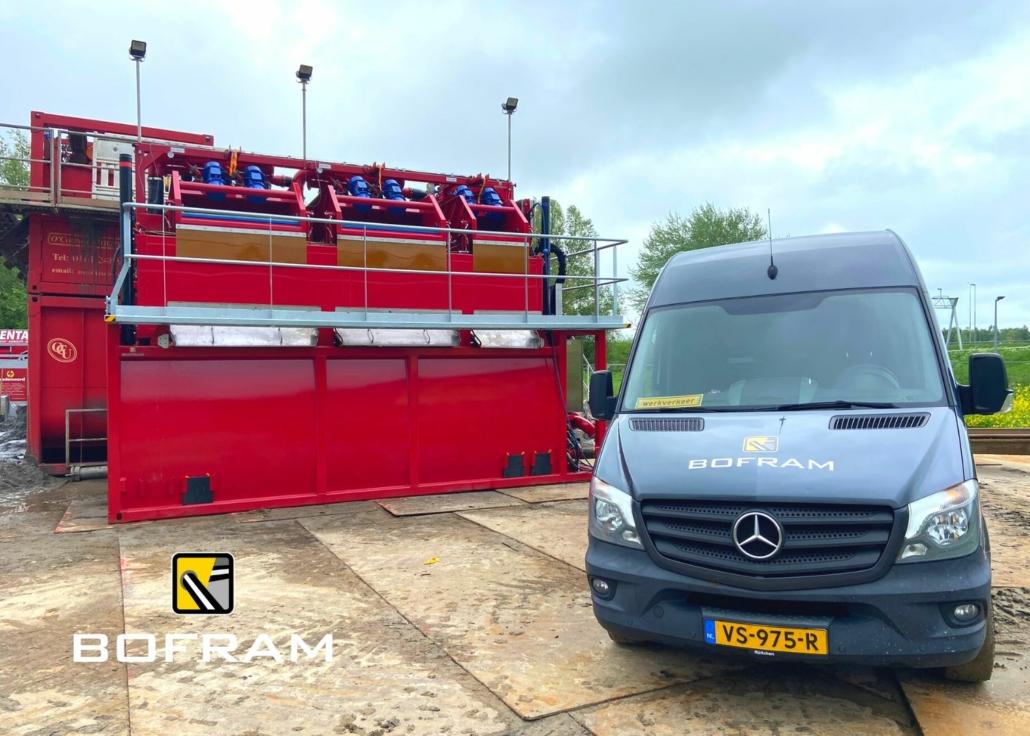

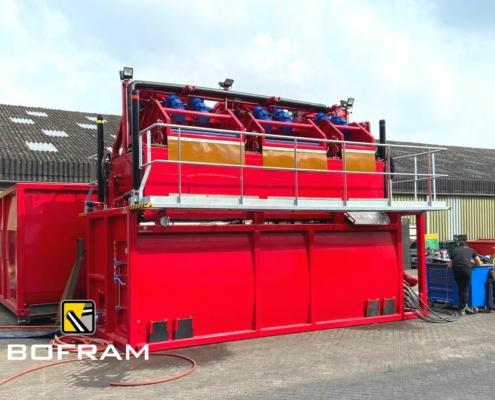

The BFR2000E Recycling unit has a compact footprint. The construction is designed in such a way that all the necessary components are integrated to make the machine operational. The container can be dropped off on-site, and with a small generator, the container can be lifted out of the storage unit. By using the remote control, the platforms can be unfolded, allowing the container to be removed from the bin using cylinders. No separate staircase is required to access the recycling unit as it is equipped with a retractable ladder.

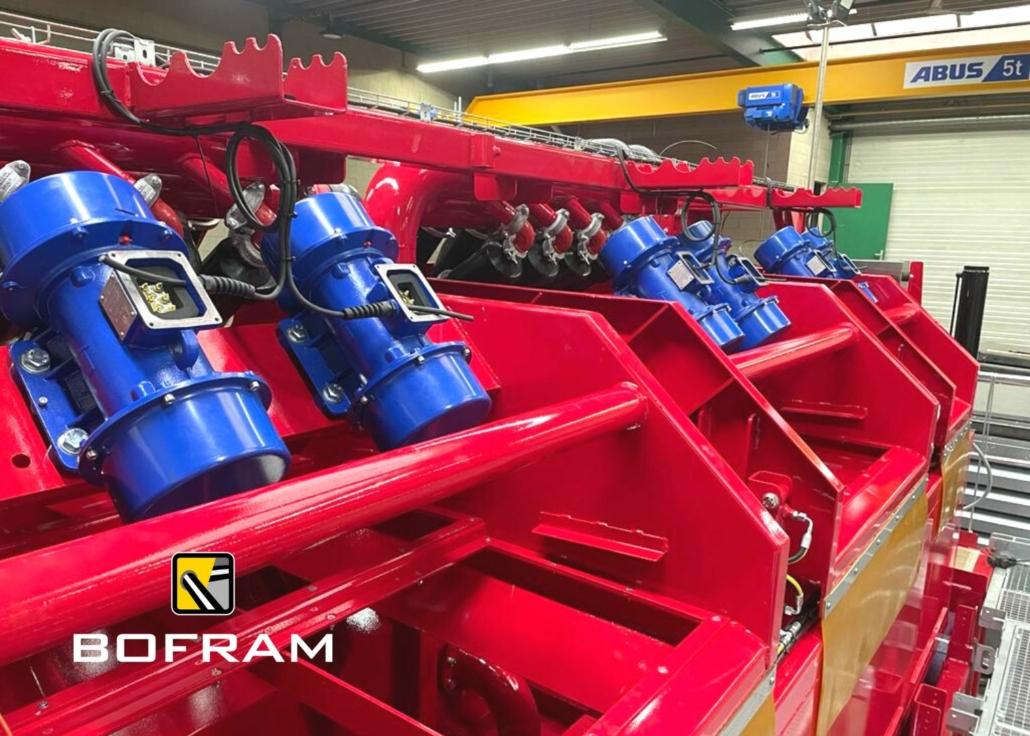

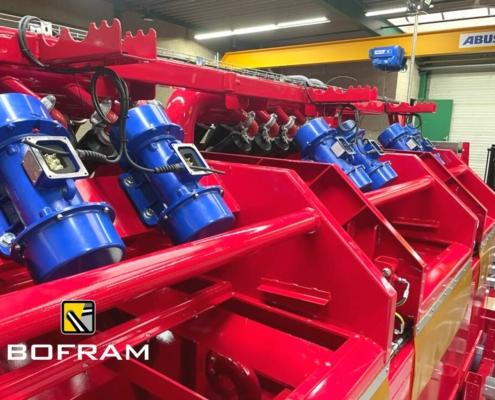

The recycling unit is equipped with three Mission Short Frame pumps, coated with a hardened Nedox coating. This means that the pumps last up to 3 times longer, and the pump and motor are mounted at a shorter distance from each other compared to traditional pumps. Additionally, the unit is equipped with PE100 pipes that are more resistant to sand than steel pipes. The recycling unit also features a shale shaker and two mud cleaners with high-flow hydrocyclones. The contaminated mud/bentonite is cleaned in three steps, with the contaminated mud entering through the shale shaker, then pumped over the first mud cleaner, and finally repeating this step on the second mud cleaner. The clean fluid then enters the storage unit.

Recycle unit BFR 2000 E

FrameSteel container
Dimensions6060 (L (mm)) X 2440 (W (mm)) x 2690 (H (mm))
Hydraulic systemLifting system for lifting the recycling unit from the storage unit
Height adjustment of shaker decks
Platform hydraulically foldable
Storage tank24m3 capacity tank
The lowered suction points allow the tank to empty completely
Access door to enter/clean the storage container
High pressure tankHigh pressure cleaner 400 volts
Hose 15 meters
Strain filter to clean the water

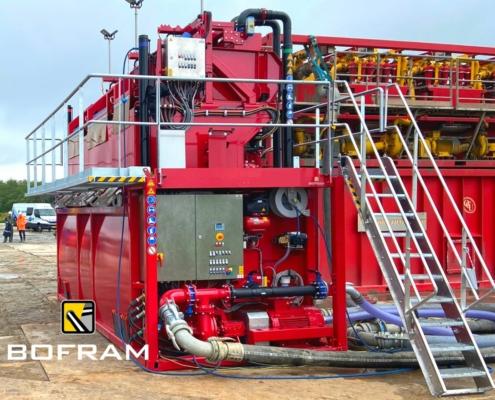

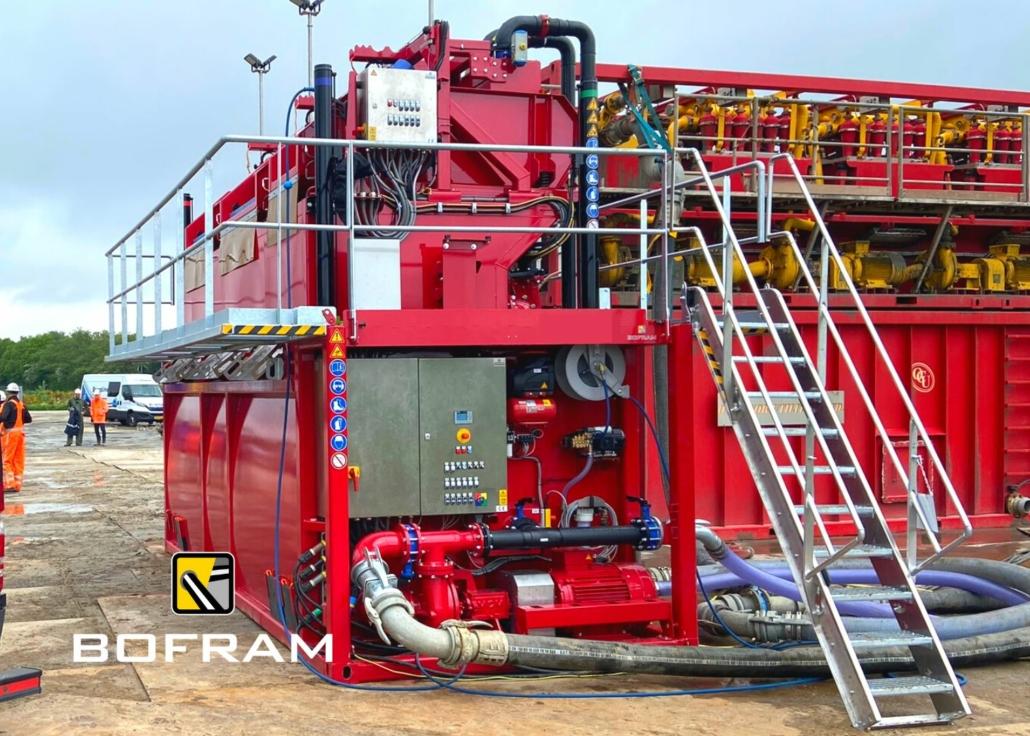

Transfer pump3500 liter/min transfer pump capacity
Lighting6x work lamp above frame (extendable)
1x work lamp in engine compartment (for maintenance)
1x work lamp in high-pressure pump room (for maintenance)
Control boxStainless steel wall cabinet, equipped with display, emergency stop and control buttons with the following functions:
o Emergencystop,mainswitch,lights on/off
o Recycling pump on/off
o Shaker decks on/off
o Transfer pump on/off
o Phase monitoring
Display for reading current status, any faults, running hours and maintenance intervals.
Remote controlRemote control equipped with the following functions;
o Emergency stop
o Recycle unit on/off
o Bordes in/out
DocumentationCE documentation, manual, parts list, hydraulic and electrical diagrams
