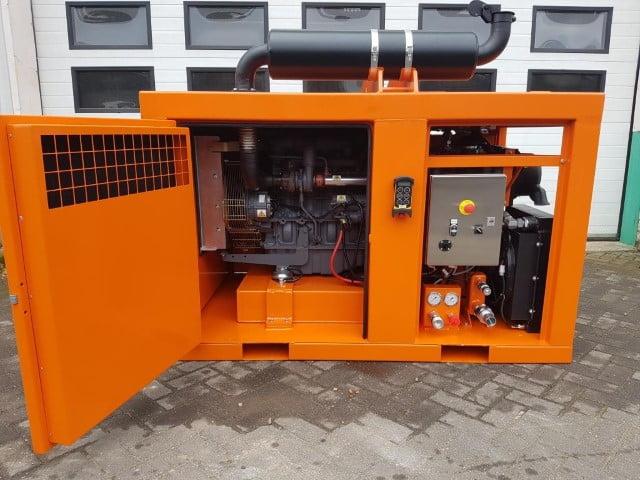

BF 40 PP

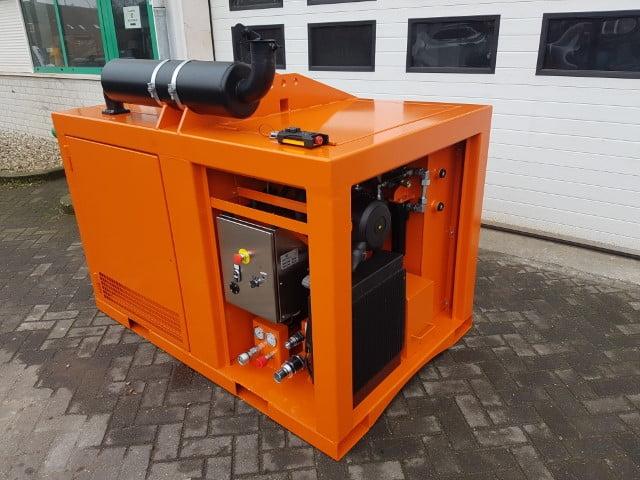

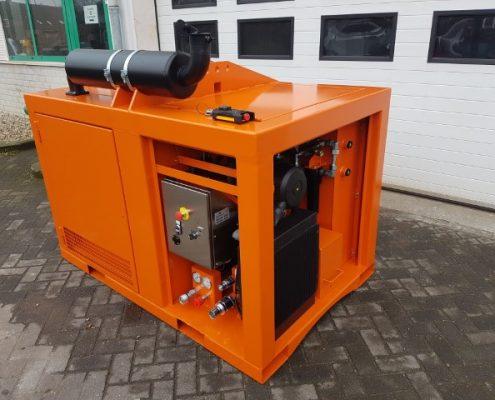

Technical specifications Bofram hydraulic power pack

  • Dimensions (LxWxH): 1800 mm x 1200 mm x 1100 (other dimensions are possible)
  • Weight: +/- 1050 kg

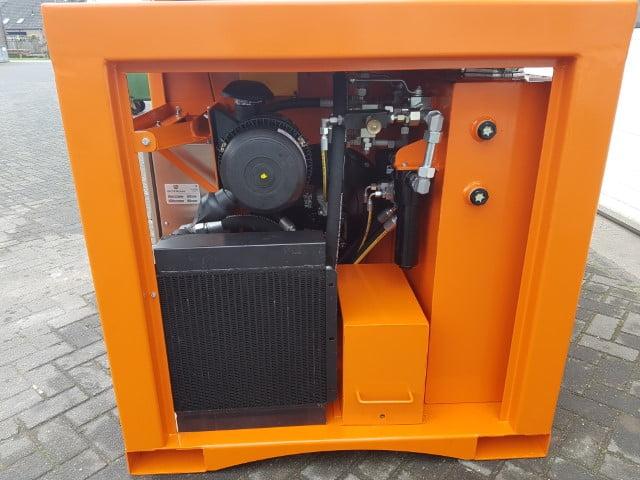

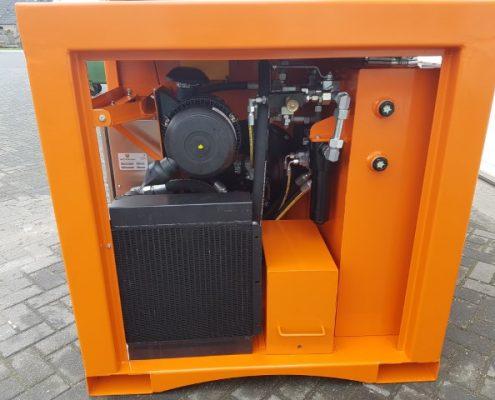

  • Stage V diesel engine, 37 kw

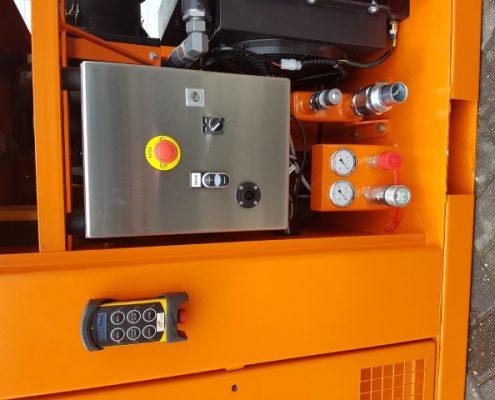

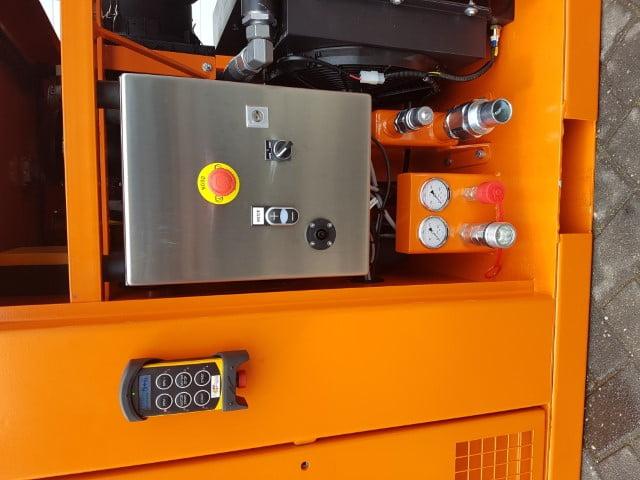

  • Control box with
    • Linear RPM speed regulation
    • Emergency stop
    • Engine start-stop
    • Engine speed +/-
  • The engine compartment has sound reduction measures to ensure a low sound level (62-65 dB)
  • Robust steel frame constructed with a lightweight profile
  • Frame provided with forklift pockets
  • Hydraulic pump; high-pressure pump, 50 liters/min, 250 bar (or otherwise on customer’s request)
  • Pressure relief valve and pressure filter on hydraulic pump.
  • Choice of quick couplings according to customer’s requirements
  • Diesel tank 40 liters
  • Hydraulic tank 60 liters, including return filter
  • Oil cooler 24 V, 100 liters / min
  • 24 VDC
  • Optional wireless remote control with motor on and off, linear speed control, display, feedback on display, error indication, and speed indication
  • Conservation; scooped and powder coated in RAL color of client’s wish

If you have any questions regarding this hydraulic power pack (BF 40 PP) or another hydraulic challenge. Please feel free to contact us! We are happy to help you.
