BF 100 PP

Technical specifications Bofram hydraulic power pack Stage V

  • Dimensions (LxWxH): 2250 mm x 1600 mm x 1800 mm (other dimensions are possible)
  • Weight: +/- 3250 kg
  • Stage V diesel engine, 90 kW
  • Control box with;
    • Engine start-stop
    • Engine speed +/-
    • Linear RPM speed regulation
    • Emergency stop
  • The engine compartment has sound reduction measures to ensure a low sound level (62-65 dB)
  • Robust steel frame constructed with lightweight profiles
  • Frame provided with forklift pockets, lifting points, and built-in container format.

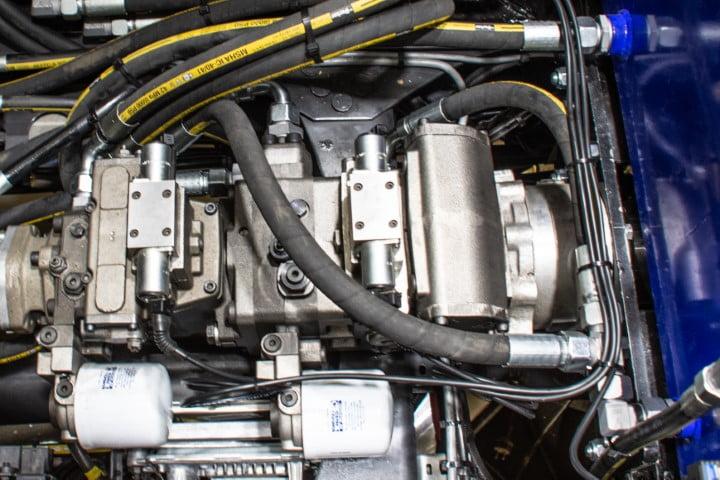

  • Hydraulic system:
    • Hydraulic pump 1; Regulated pump 190 liters / min 210 bar (1600 rpm)
    • Hydraulic pump 2; Regulated pump 126 liters/min 330 bar with power control
    • Hydraulic pump 3; Fixed delivery pump 52 liters/min 200 bar
    • Hydraulic pumps with pressure relief valve and pressure filter
  • Type of quick couplings according to customer requirements
  • Diesel tank 220 liters
  • Hydraulic tank 350 liters with return filter and oil level measurement.
  • Display with hydraulic oil level and temperature monitoring with error indication
  • Oil cooler 350 liters/min
  • 24 VDC
  • Wireless remote control with motor on and off, linear speed control, display, feedback on display, error indication, and speed indication
  • Conservation; scooped and powder coated in RAL color of client’s wish

If you have any questions regarding this hydraulic power pack Stage V(BF 100 PP) or another hydraulic challenge. Please feel free to contact us! We are happy to help you.
