BF 50 PP

A hydraulic powerpack is an independent power source to provide energy to hydraulic machines or other hydraulic systems. By transporting energy from A to B with the use of fluids, an hydraulic power source generates an oil stream that drives the hydraulic machines.

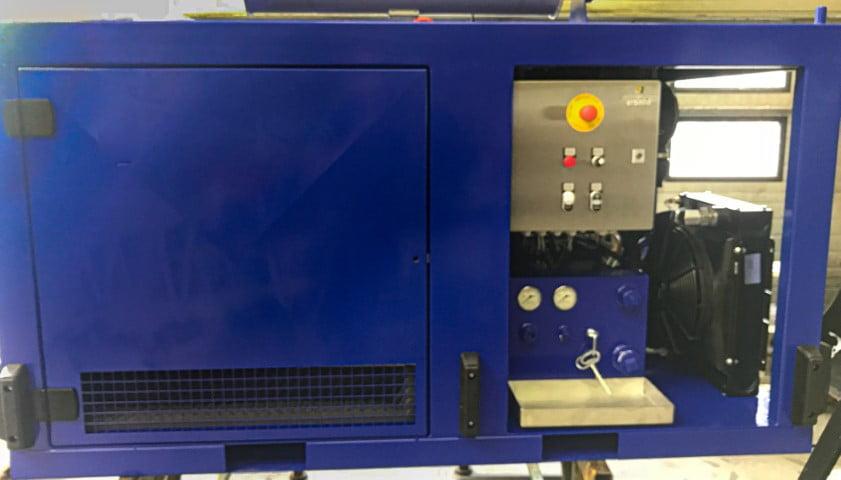

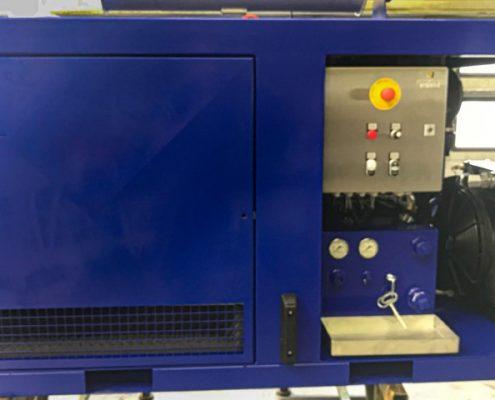

Technical specifications Bofram hydraulic power unit

  • Dimensions (LxWxH): 1800 mm x 1200 mm x 1200 mm (other dimensions are possible)
  • Weight: +/- 1250 kg

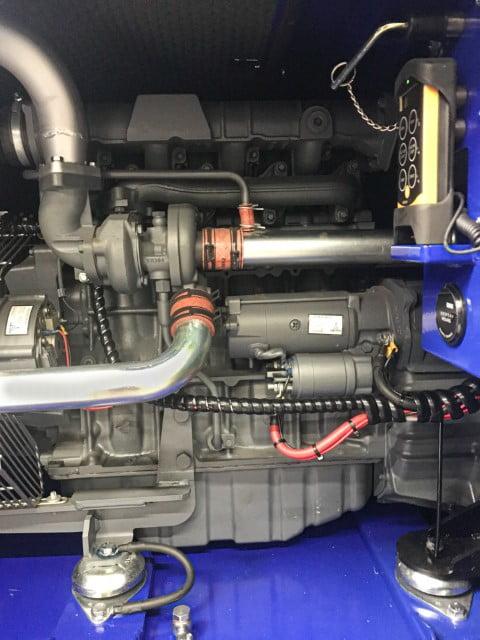

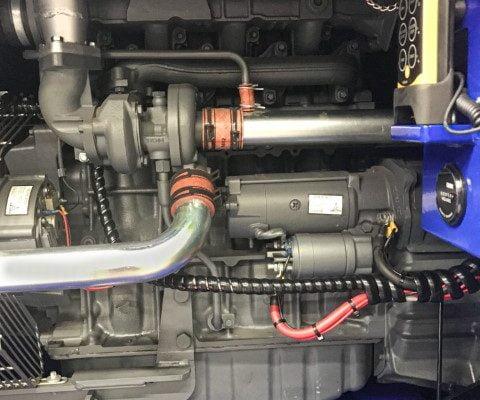

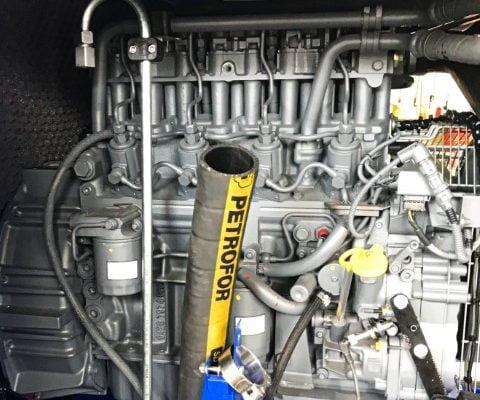

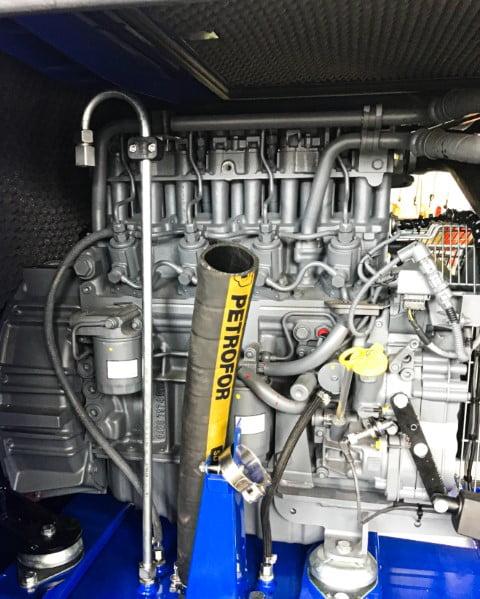

  • Stage V diesel engine, 47 kw

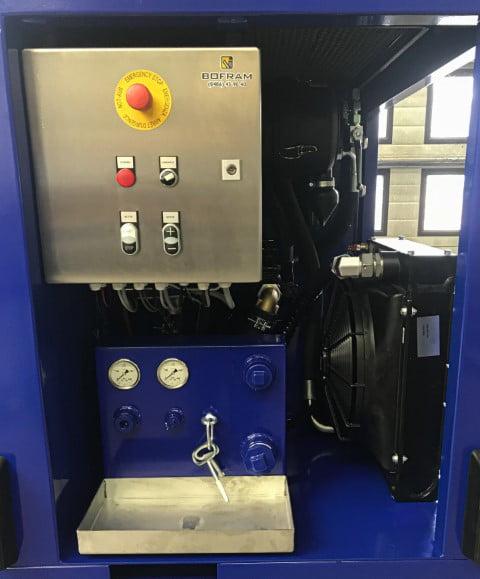

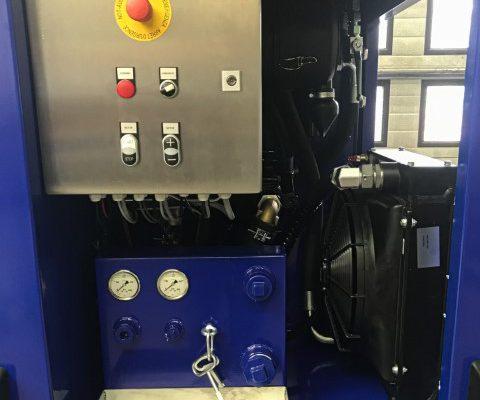

  • Stainless steel control box with;
    • Linear RPM speed control
    • Emergency stop
    • Engine start-stop
    • Engine speed +/-

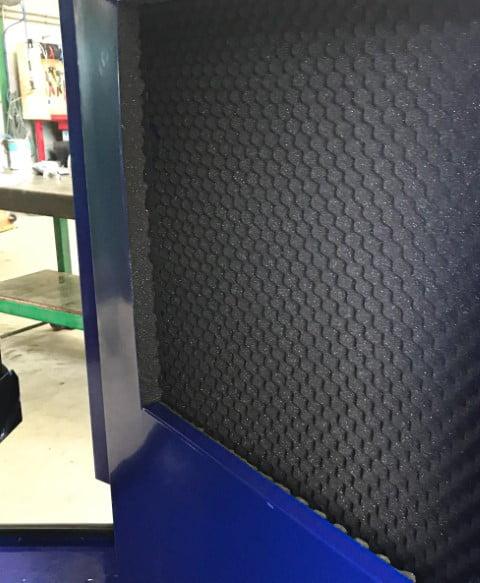

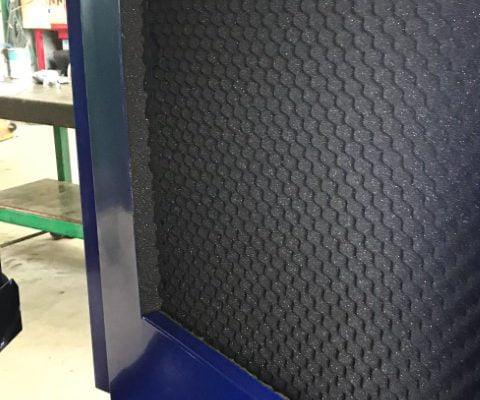

  • The engine compartment has sound reduction measures to ensure a low sound level (62-65 dB)
  • Robust steel frame constructed with lightweight profiles
  • Frame provided with forklift pockets
  • Hydraulic pump; fixed delivery pump, 90 liters/min, 330 bar (an additional pump is optional)
  • Pressure relief valve and pressure filter on hydraulic pump
  • Type of quick couplings according to customer requirements
  • Diesel tank 80 liters
  • Hydraulic tank 120 liters, 1 return filter, oil level meter
  • Hydraulic oil level and temperature monitoring with error indication on display

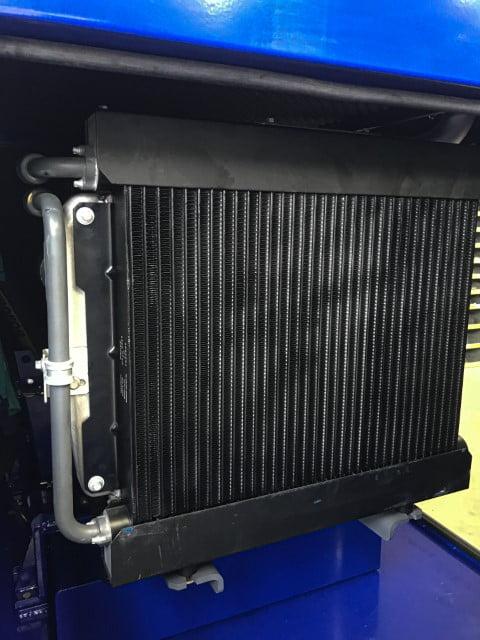

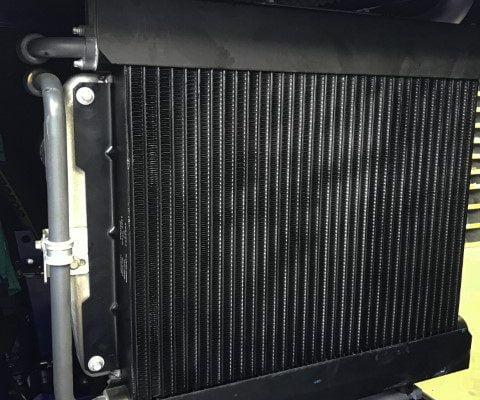

  • Oil cooler 24 V, 120 liters / min
  • 24 VDC

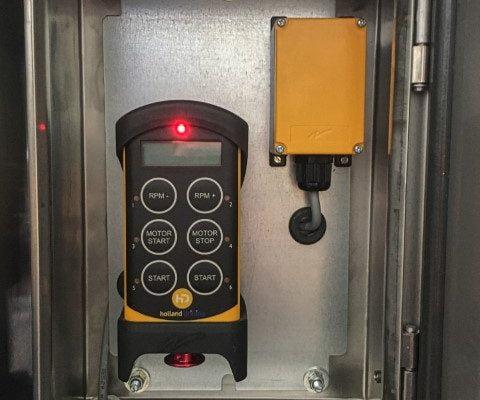

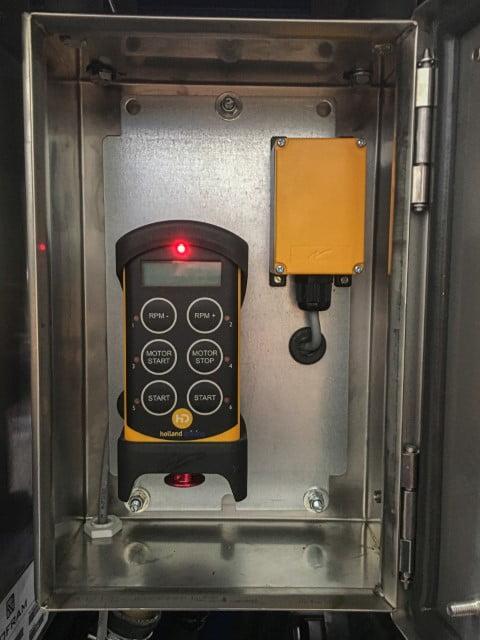

  • Wireless remote control with motor on and off, linear speed control, display, feedback on display, error indication, and speed indication
  • Conservation; scooped and powder coated in RAL color of client’s wish

If you have any questions regarding this hydraulic power unit (BF 50 PP) or another hydraulic challenge. Please feel free to contact us! We are happy to help you.
