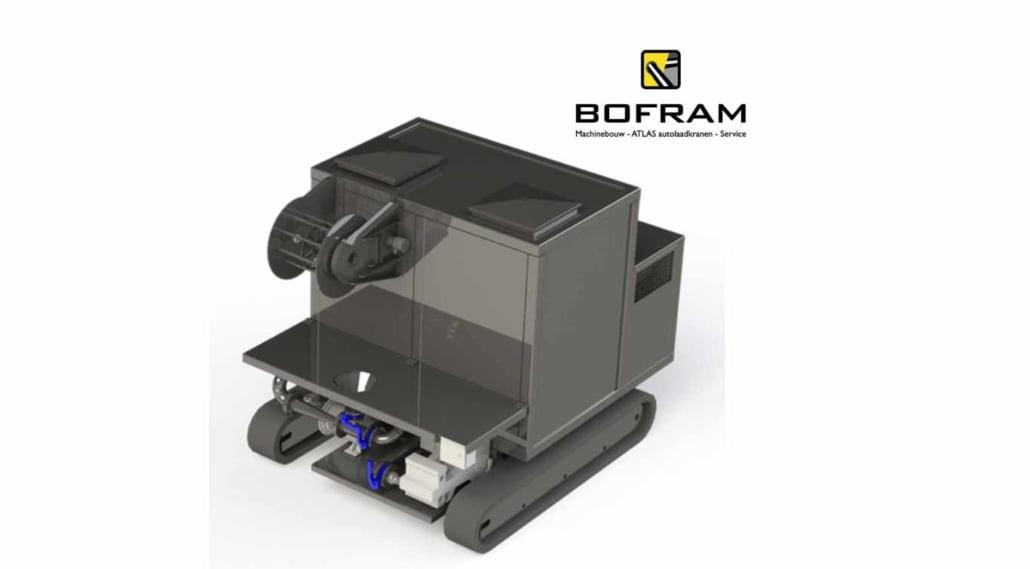

Mix pump unit with rubber tracks BFMP 280 DR
| Frame | Robust frame made of steel with rubber tracks |
| Dimensions | 3200 (L (mm)) X 2400 (W (mm)) x 2600 (H (mm)) |
| Power drive | Diesel / Hydraulic |
| Mix pump | Type 250 centrifugal pump (KSB) |
| Mix capacity | 2000 liters per minute |
| High pressure pump capacity | 250 liters per minute @ 70 Bar |
| Tank | 1x mixtank made of steel 2.5 m3 1x watertank made of steel 2.5 m3 |
| Controls | Stainless steel electrical box attached to the unit |
| Length rubber tracks | 2700 mm |
Options mix pump with rubber tracks
- Circulation system
- Automatic filling system, the external waste water pump can be switched on by means of level measurement in the tank
- Dry running protection on high-pressure and mix pump (reduces the risk of damage)
- Reel frame with freewheel function
- Automatic service/maintenance notification
- Mix pump with 2 speeds; high speed during mixing, low speed to keep product moving
- Work lighting
- Maintenance-friendly
- Minimal dirt accumulation due to the shape of the tank
- Filling pipe at the front or back, in consultation with the customer
- Rubber track drive via wireless remote control
- Wastewater filter in supply pipe mounted, position in consultation with customer
- Suction pipe from both tanks, fitted with shut-off valves to switch between the tanks
- Discharge line equipped with pressure gauge and extra connection for powering the drill
- High-pressure pump with pulsation damper
- High-pressure pump protection by switching off the drive
- Remote control with liters per minute control
