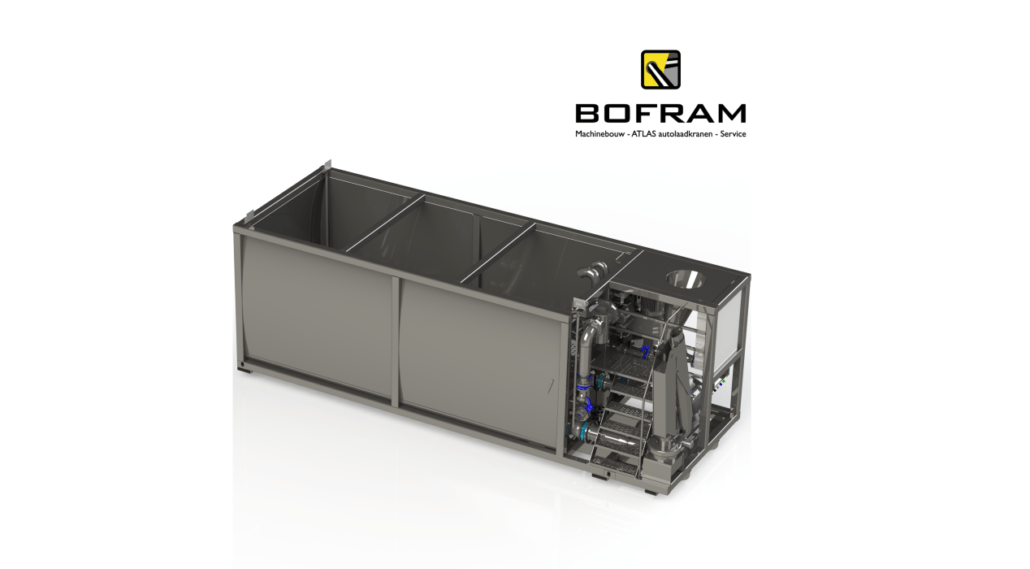

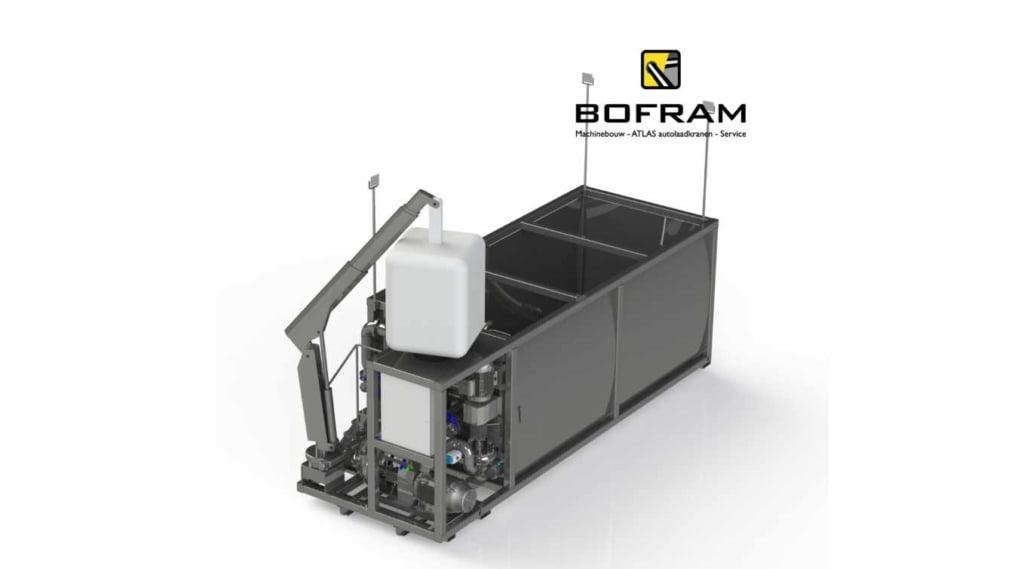

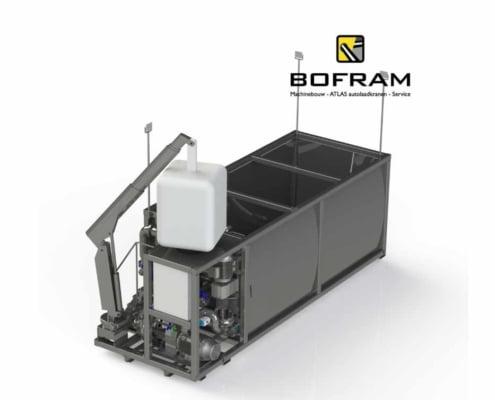

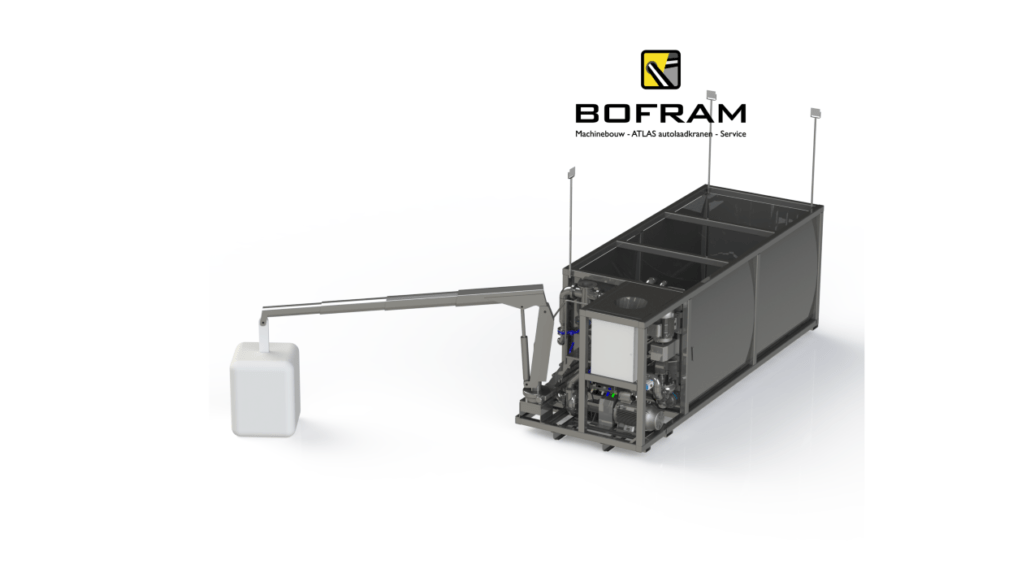

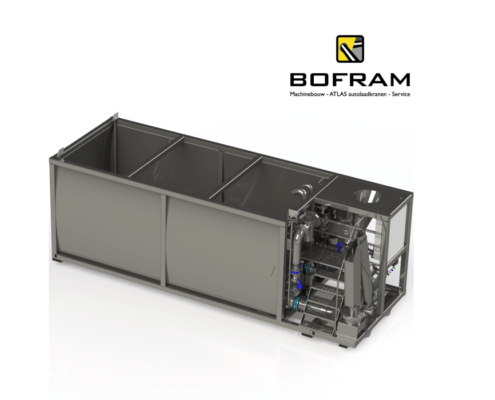

Bentonite mixer with crane

BFM 2000 EK

The loader crane is a very useful and ergonomic addition to the bentonite mixer.

FrameRobust frame made of steel with hook lift system
Steel and PE pipework
Dimensions7200 (L (mm)) X 2440 (W (mm)) x 2500 (H (mm))
Mix pump power drive Electrically driven, with soft starter
Mix pumpMCM short frame mix pump with mechanical seal
Equipped with special impeller for faster maturation of bentonite
Mix capacity4500 liters per minute
TransferpumpMCM short frame mix pump with mechanical seal
Transfer capacity2500 liters per minute
Mix tankSteel mixtank 25m3 with draining point and rounded walls. The tank is light in weight, is curved for minimal dirt accumulation and has lowered intake points for emptying the tank. Furthermore, the tank is equipped with a staircase, level measurement and recycling terminal.
Loader craneLoader crane 5 ton/meter with a maximum reach of 5,1 meter.
Electrically driven power pack
Control boxStainless steel electrical control box mounted on unit
● Emergency stop, main switch, lighting on/off
● Mixing pump on/off
● Transfer pump on/off
● Loader crane on/off
● Hour meter
● Phase sequence monitoring
● Control lamps
● Display for status, faults, hours, maintenance intervals
● Activating button for bentonite suction from hopper table
Remote control● Wireless remote control
● Loader crane remote control
Additional● Position of filling line in consultation with customer
● Dirty water filter
● Hopper table with shut-off valve suitable for bigbag use
● Working lights x4
● Blasting, scooping, 2K coating
DocumentationDocumentation CE documentation
Digital & Hardcopy Operating & Maintenance Manual in Dutch
