Specifications mix unit:
- Filling pipe position, connection option, and water inlet filter in consultation with the customer.
- Suction line fitted with shut-off valves to enable switching between the tanks
- Pressure pipe equipped with pressure gauge and extra connection for high pressure pump on the drill
- Venturi model Bofram Techniek
- PE piping
- Equipped with hopper table and suction hose

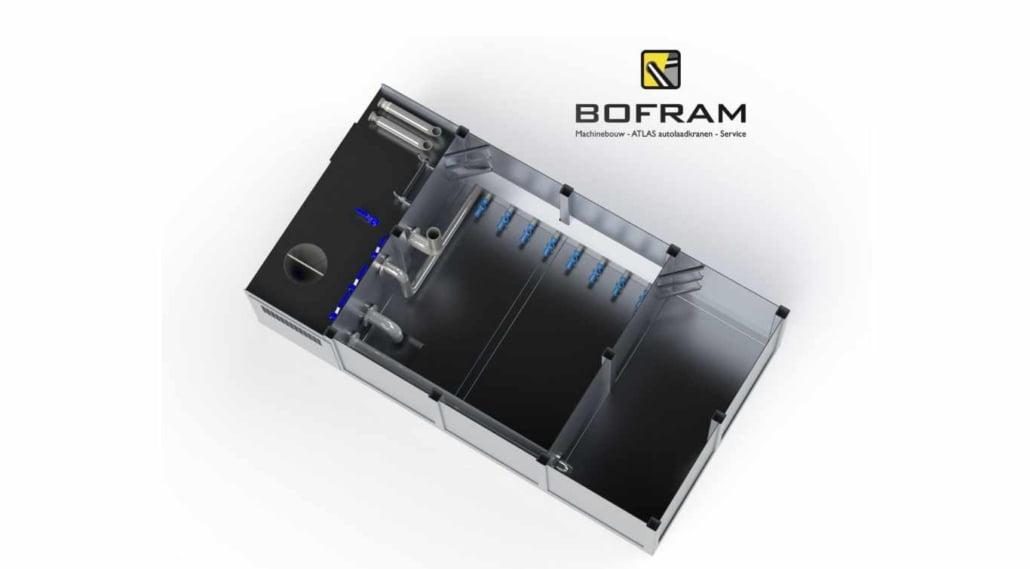

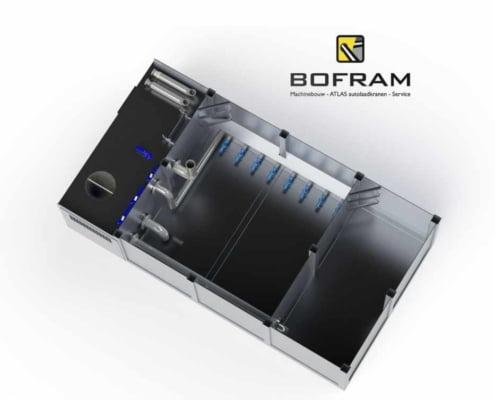

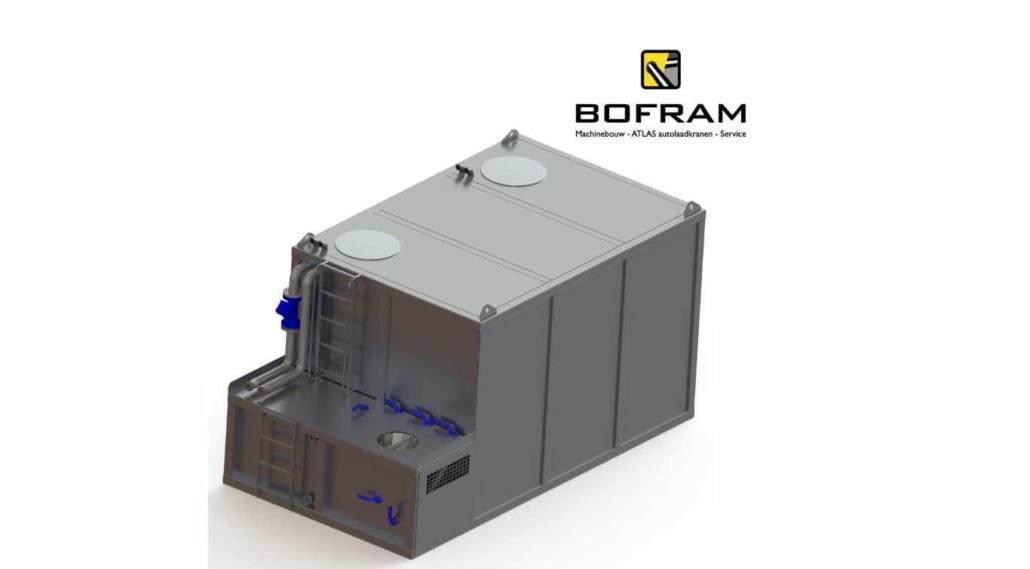

Mix set aluminum BFM 1000 D
This mix set is made of aluminum. This is more durable, lighter, and more resistant to bentonite.
| Frame | Aluminum |
| Dimensions | 4260 (L (mm)) X 2300 (W (mm)) x 2200 (H (mm)) |
| Tanks | • 1x Aluminum mix tank 10m3, equipped with manhole and drain point. The tank is equipped with a level measurement indicator. • 1x Aluminum water tank 5m3 , equipped with manhole and drain point. The tank is equipped with a level measurement indicator. • Aluminum tanks are shaped in such a way that minimal dirt build-up is possible |
| Power drive | Diesel engine Stage V 37 Kw Kubota (silent version) |
| Mix pump | MCM shortframe mix pump with ceramic seal |
| Mix capacity | 2000 liters per minute |
| Control | • Stainless steel wall cabinet, equipped with display, emergency stop and control buttons. Buttons have the following functions; Emergency stop, diesel engine start/stop, lighting on/off • Display for reading current status, possible malfunctions, running hours and maintenance intervals. |
Extra options:
- High pressure cleaner plunger pump electrically driven 230 V / 2-3 Kw
- High-pressure reel with hose with spray gun (rolls up automatically)
- Filling line on top of worksurface, equipped with water inlet filter and valve
- Filling line on top of worksurface for recycling equipped with valve
- Fixed stairs on worksurface to be able to look at the top of the tank
- Electrically driven submersible pump 230 V / 2-3 Kw
