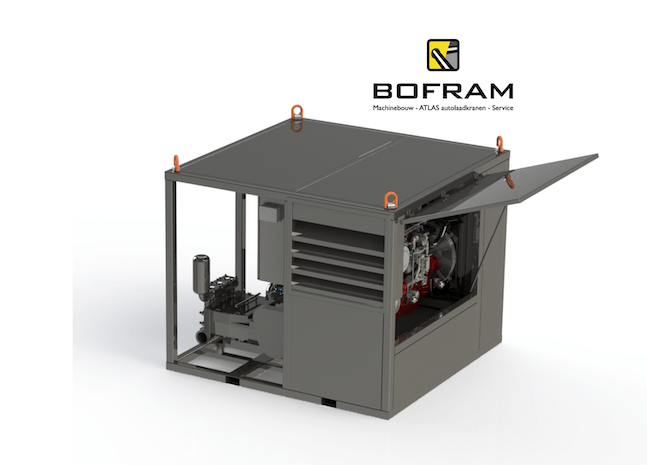

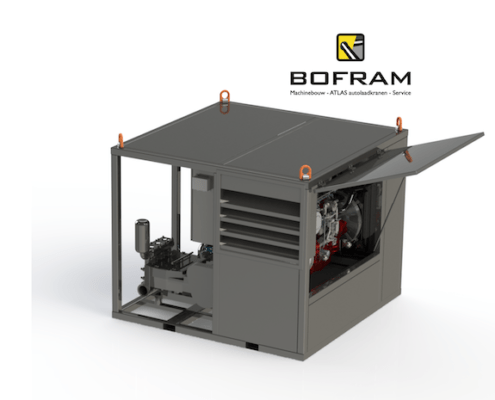

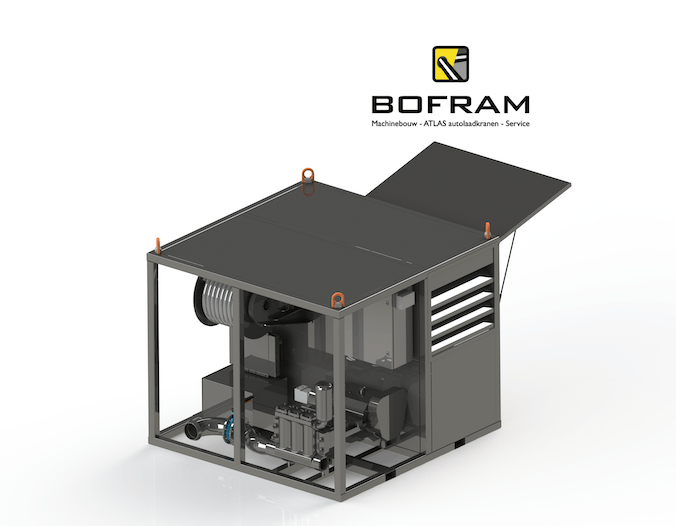

HDD pump set BFP 750 D
HDD pump set
The HDD pump set 750 D is used to pump bentonite to the drilling machine. This pump set is equipped with a Stage V diesel engine and the high pressure pump is equipped with a smart control. It is easy to move the set with a forklift truck because it has forklift pockets. Another way of moving is by using a crane and the lifting eyes on top of the machine.
HDD machine service
Bofram Techniek specializes in the conception, design, realization and maintenance of various HDD machines. For service or repairs you can always contact us. We have various parts in stock. Think of filters, oil, remote control, battery, press valves, etc. Everything to help you directly, so that you can quickly run again.
| Frame | Steel frame |
| Dimensions | 2400 (L (mm)) X 2400 (W (mm)) x 2000 (H (mm)) |
| Dieselmotor | Stage V diesel engine 100 kW at 2300 rpm Built-in oil cooler Fully insulated engine enclosure 250 L diesel tank & 50 L Ad-Blue tank |
| High pressure pump | Kerr KT-3400 PT 650″ L/min @ 70 bar Liner wash and splash lubrication possible |
| Hydraulic system | Closed system pumps mounted on diesel engine Hydraulic plunger motor for driving high pressure pump |
| Hydraulic hose reel | 30 m with a 1 1/2″ hose diameter |
| CE documentation | Manual, parts list, hydraulic and electrical diagrams Training day |
| Lighting | 1x worklight above frame (extendable) 1x worklight in engine room (for maintenance) 1x worklight in high pressure pump room (for maintenance) |
| Control | Control box with display, emergency stop and operating buttons. Buttons have the following functions; o Emergency stop, main switch, lighting on/off o Diesel engine on/off o High pressure pump on/off o High pressure litres+/- o Hour counter for Diesel engine and high pressure pump Display for reading the current status, any malfunctions, operating hours and maintenance intervals. |
| Remote control | Remote control, equipped with the following functions; Emergency stop Diesel engine on/off o High pressure pump on/off o Reel on/off o Reading the liters per minute, Working pressure high pressure pump |
