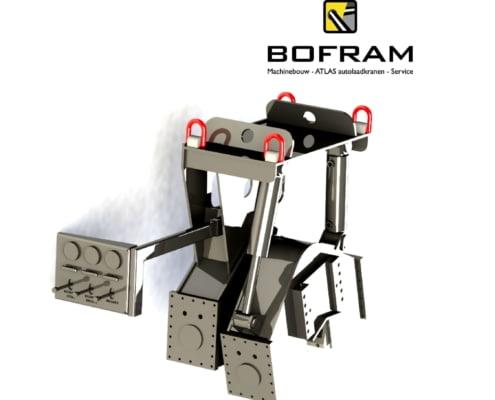

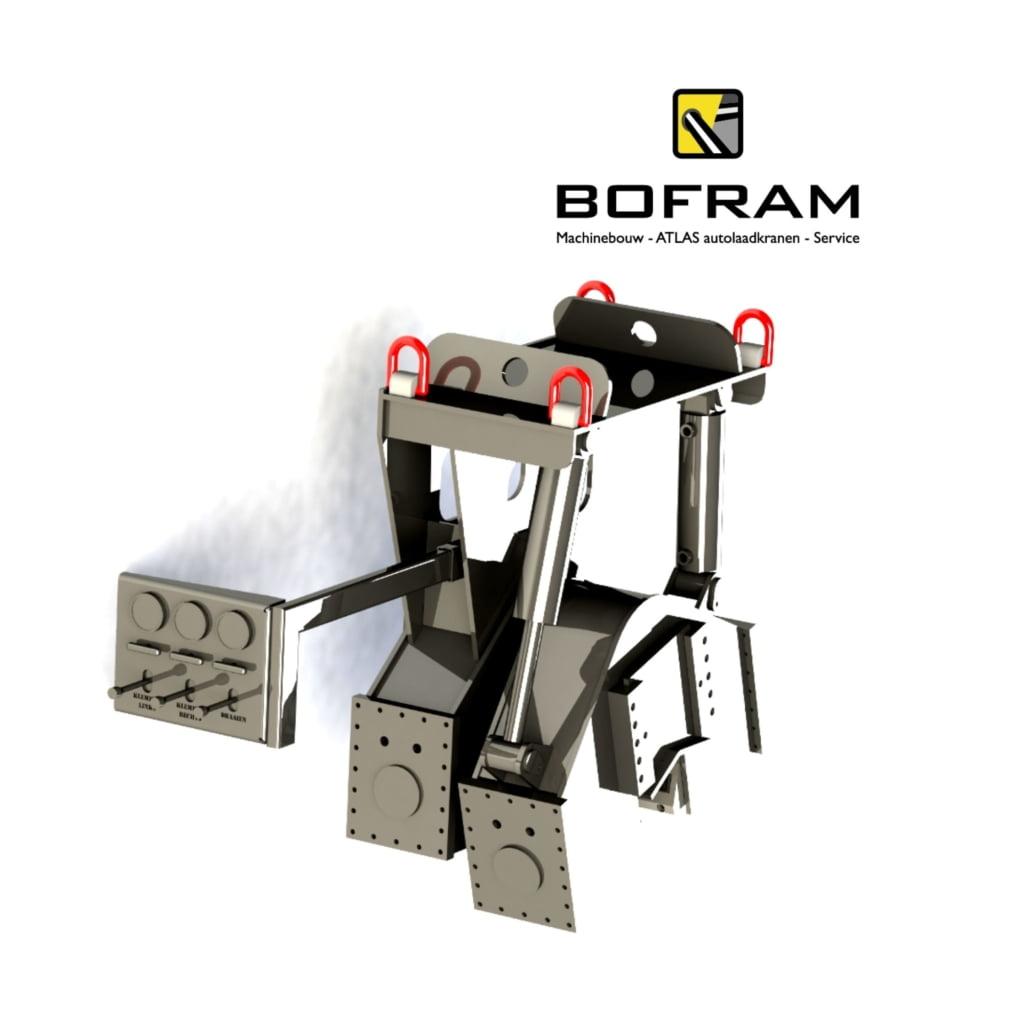

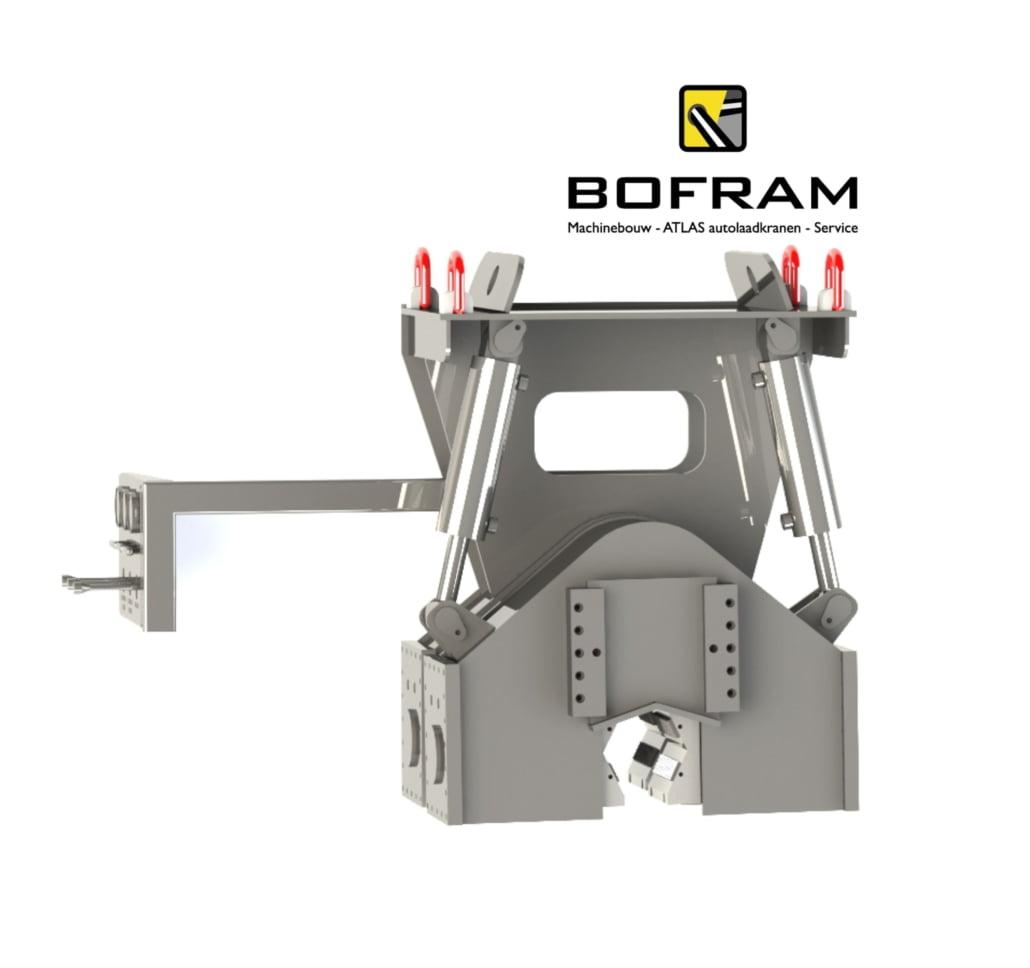

Bofram Breakout unit for directional drilling


This breakout unit is part of our range of HDD site equipment. This unit is specially designed for the directional drilling industry. It is mobile, compact and perfect for breaking out and opening drill pipes and other HDD tooling.

Dimensions (mm)1200 (L) x 1000 (B) x 1330 (H)
Clamping unit90-200 mm
Weight1216 kg
Cylinders4x clamp and 2x tilt
PerformanceTorque break: adjustable up to 100,000 Nm
Torque up: adjustable up to 60,000 Nm
HydraulicsFlatface quick coupling
Working pressure 200 bar @ 60 l/min

This product can be custom made for you by our engineers and professionals. We gave this product the following specifications to inspire. Please do not hesitate to contact us if you would prefer any alteration on this product. It is also possible to color this product in your company colors or any color of preference.


  • The breakout unit is equipped with lifting points and a transport rack with forklift pockets
  • Unit is equipped with an extendable operating arm for a safe working position
  • Clamping force can be variably adjusted
  • Hydraulic pressure readable on manometer
  • CE label, manual and hoisting certificate
  • Optional: remote control
