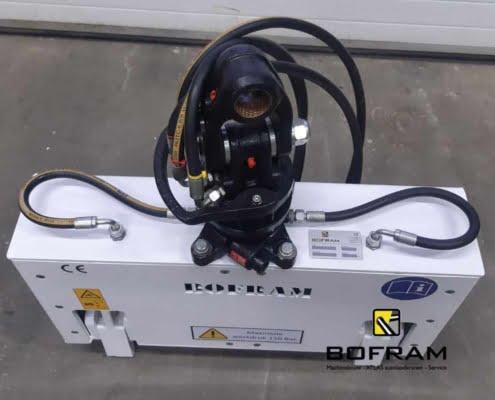

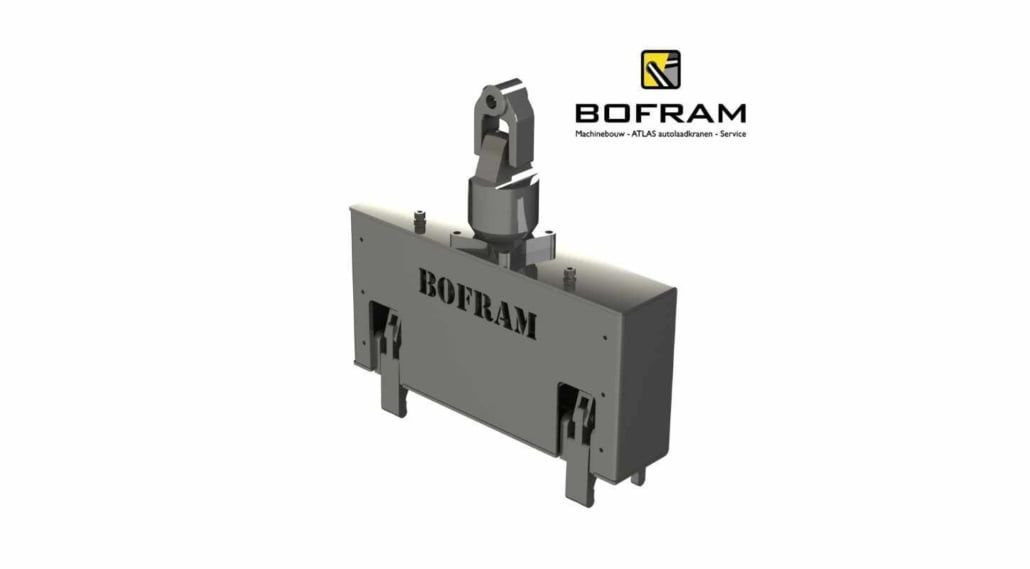

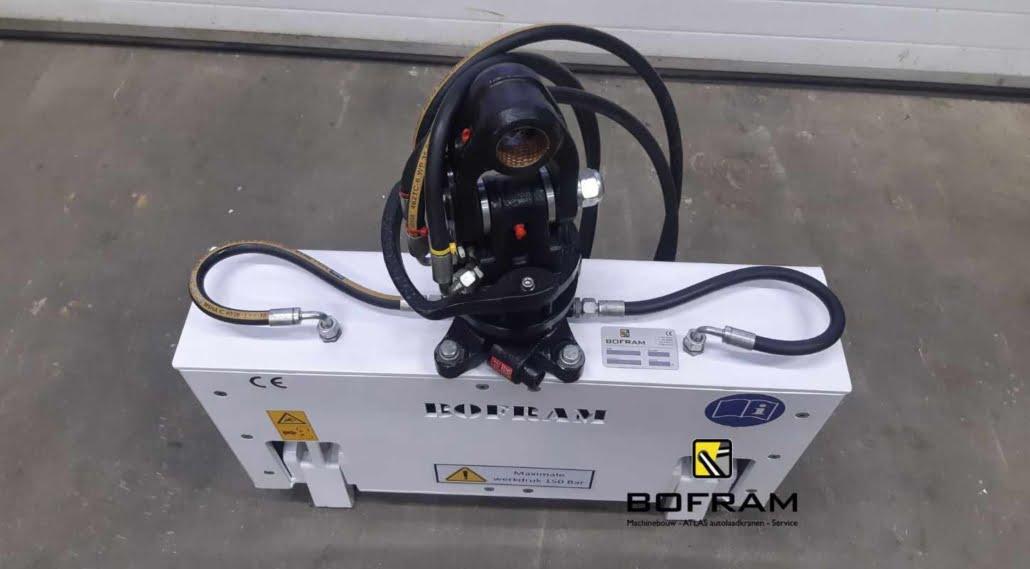

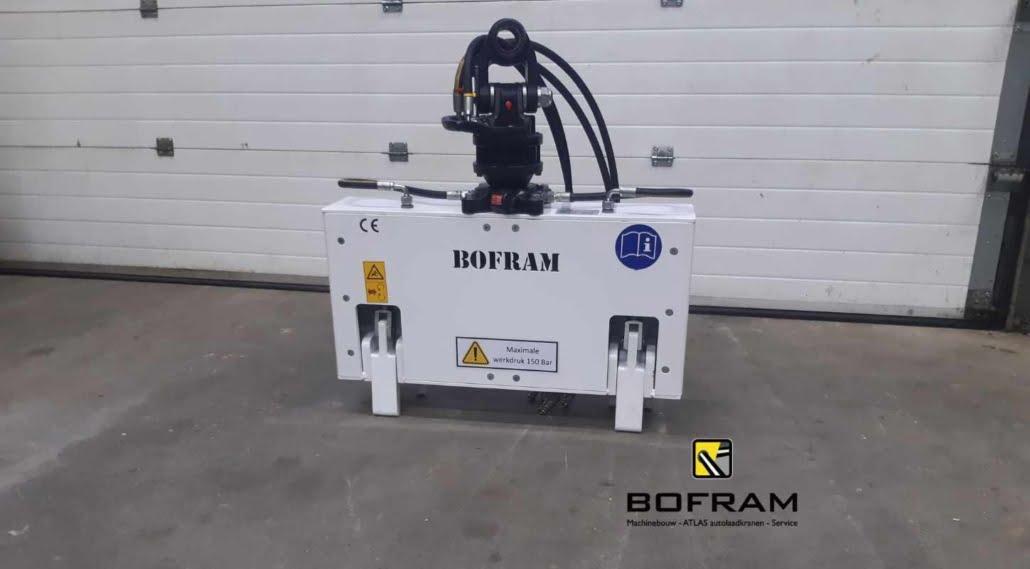

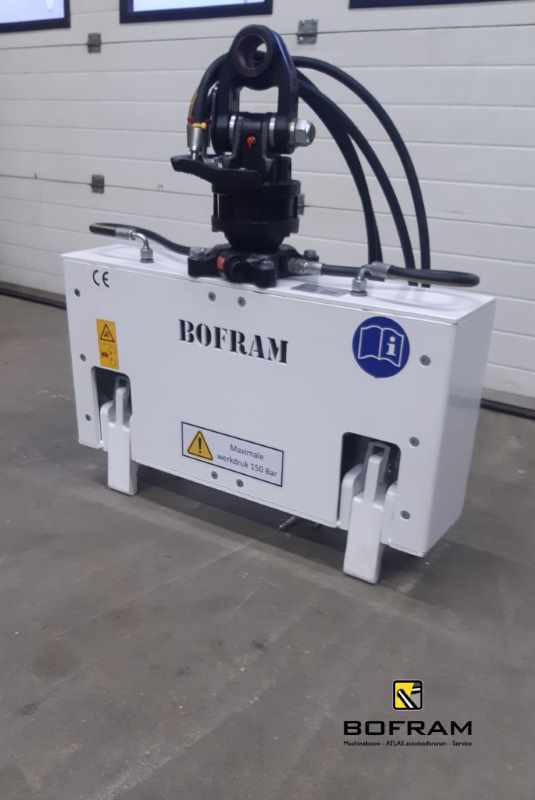

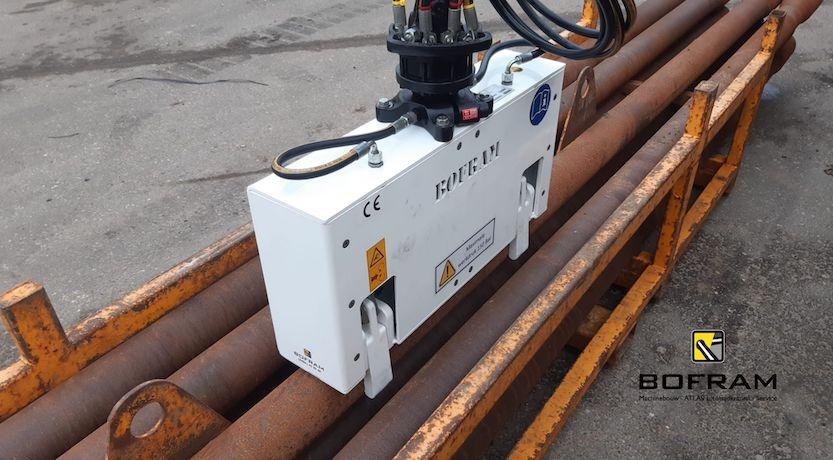

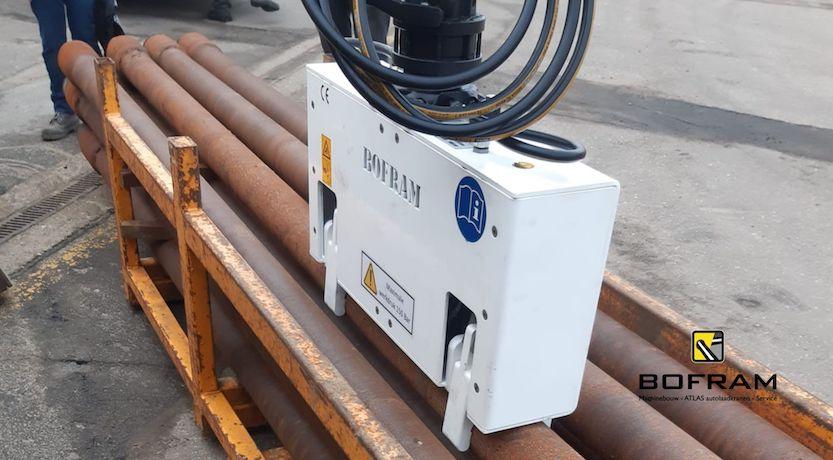

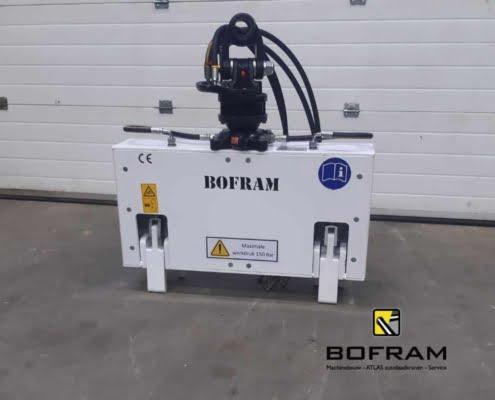

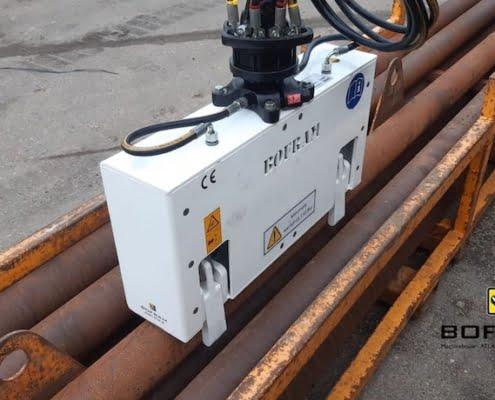

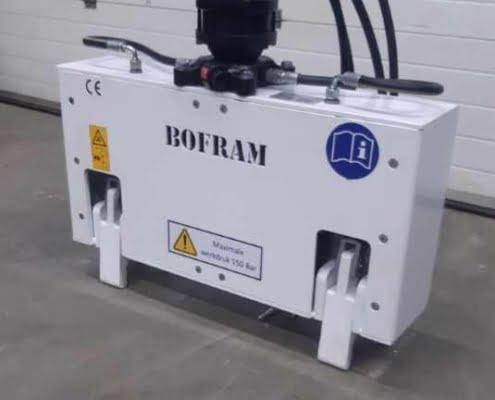

Drill rod clamp with rotator

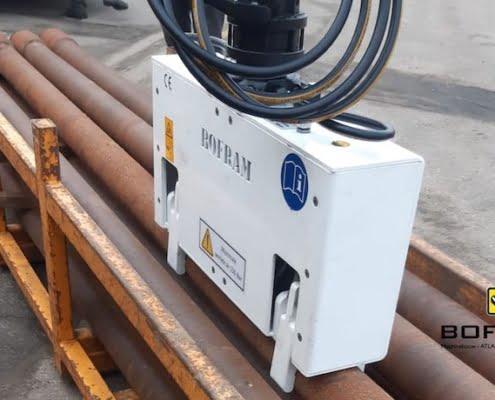

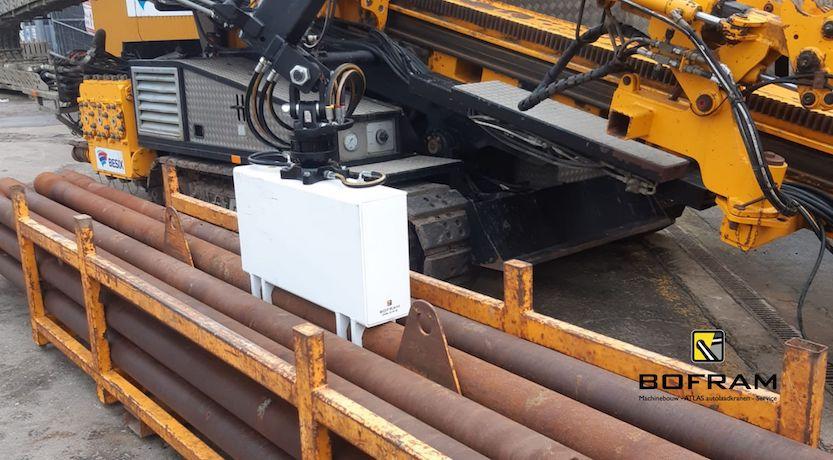

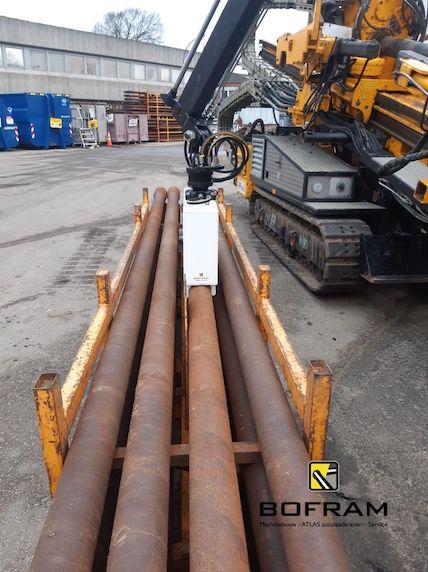

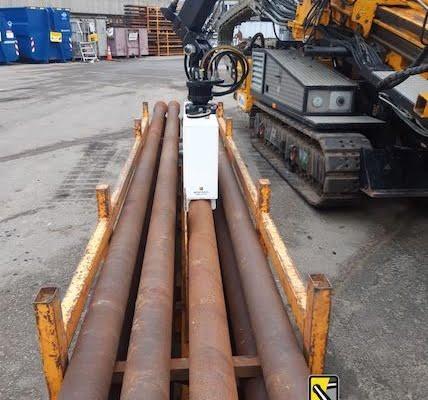

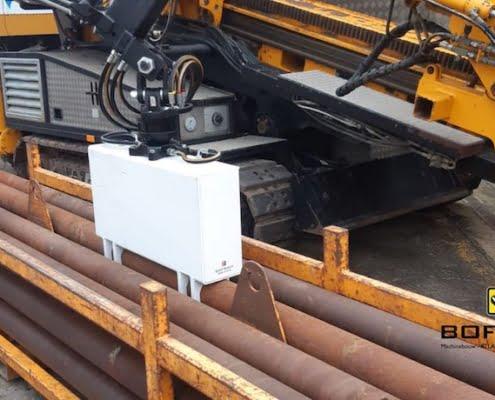

This compact drill rod clamp with rotator is narrowly constructed so it can easily pick up any drill rod from the crate. This drill rod clamp is suitable for use with a crane that has two extra hydraulic functions. The first extra function is needed to clamp the drill rod and with the other extra function you can operate the rotator so the drill rod can be rotated in the desired position.

MaterialHigh-quality steels
Dimensions (mm)800 (L) x 180 (B) x 660 (H)
Drill rod diameter127 mm, 5 inch
Weight130 kg
Max weight to lift300 kg

Drill rod clamp / pipe handler:

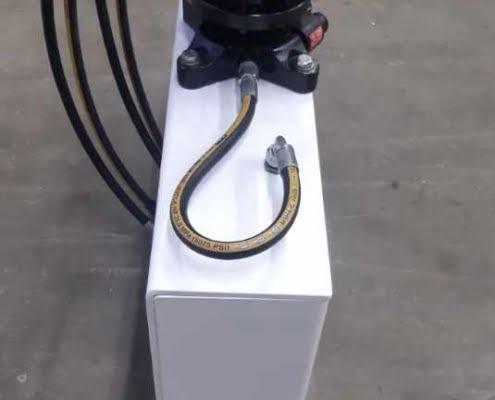

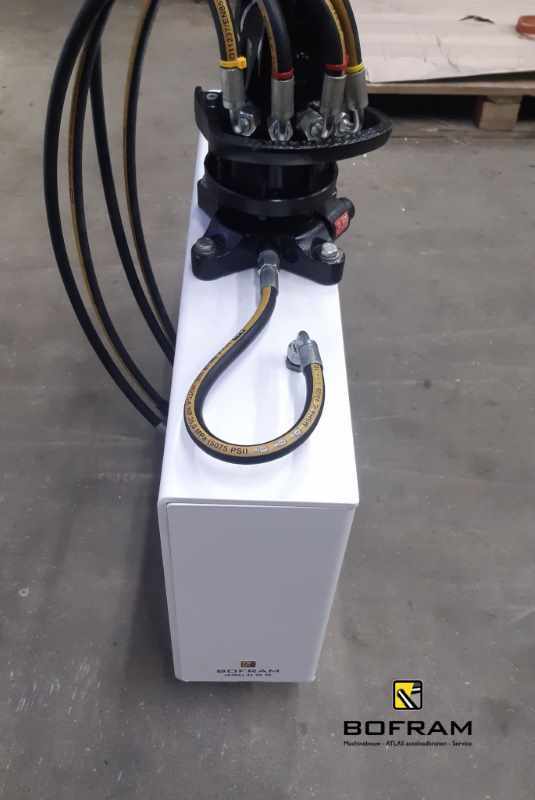

  • The clamp is equipped with a rotator with rotator bot
  • The clamp is equipped with a built-in maximum clamping force protection
  • The clamp is equipped with ballast protection so it will always grip the tube properly. This is to prevent the drill rod from falling out.
  • The clamp is provided with a holding function after clamping.
