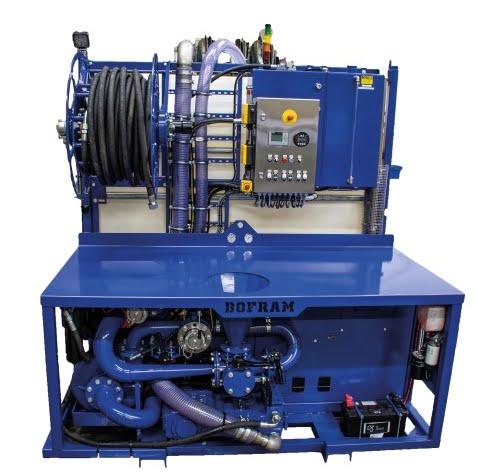

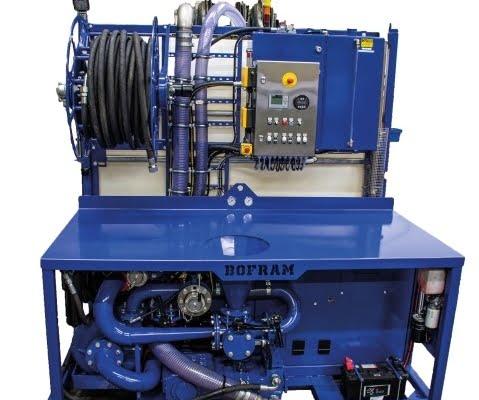

trenchless mixing and pump unit HDD BFM 250 d
trenchless mixing and pump unit HDD BFM 250 d
trenchless mixing and pump unit HDD BFM 250 d

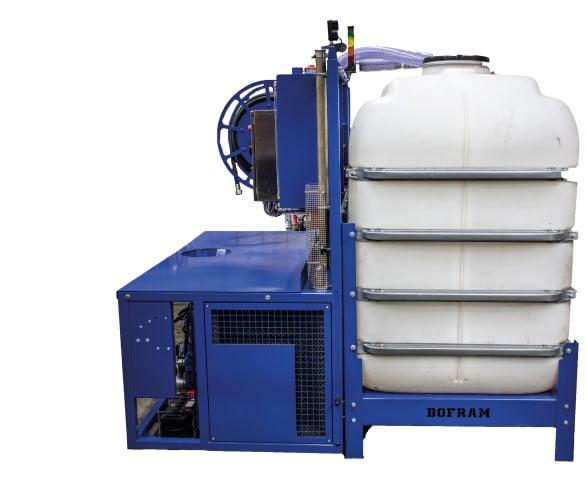

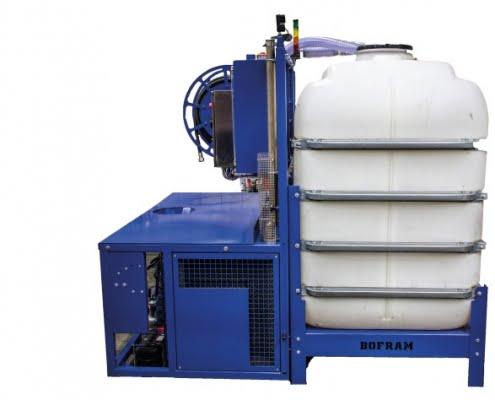

HDD dammer system BFM 250 d side
HDD dammer system BFM 250 d side

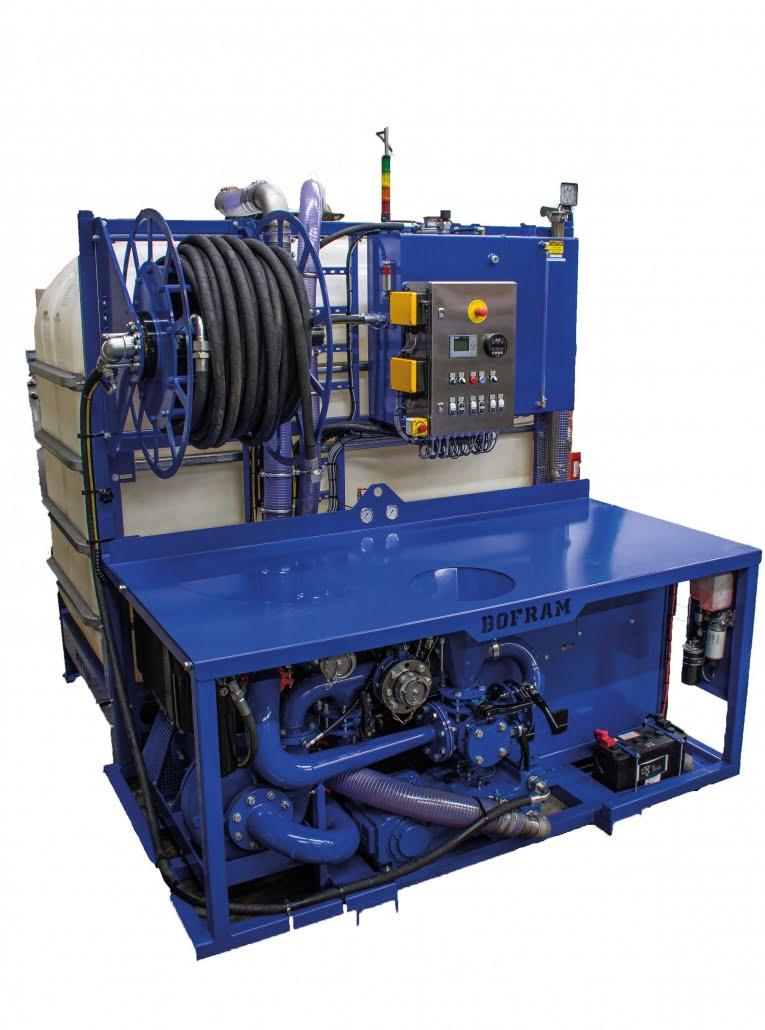

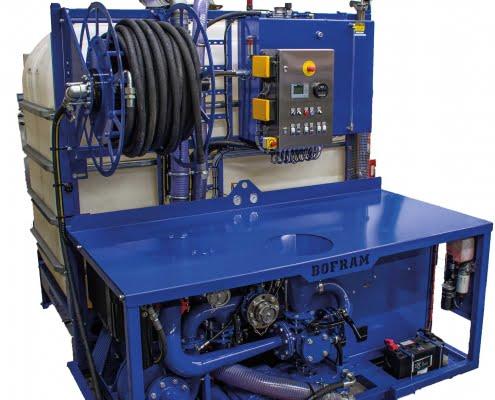

HDD bentonite system BFM 250 d side
HDD bentonite system BFM 250 d side

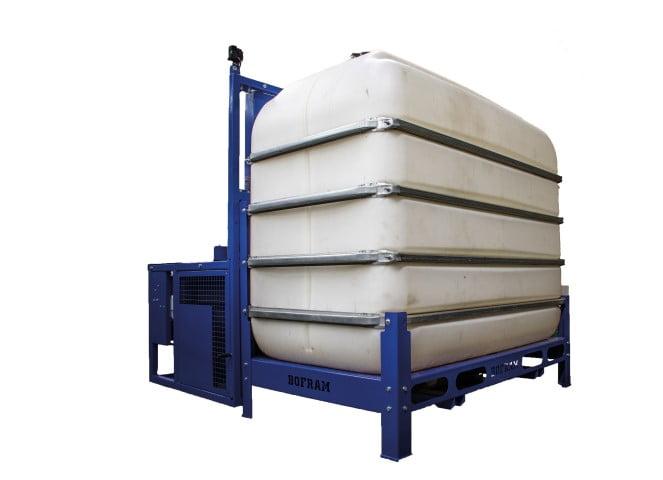

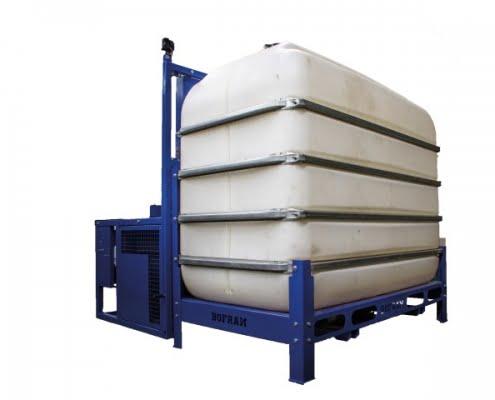

HDD trenchless drilling unit BFM 250 d water tank
HDD trenchless drilling unit BFM 250 d water tank
Project

Bentonite hdd system – BFM 250 D

Request a quote
Download PDF
FrameRobust frame made of steel with forklift pockets
Dimensions2500 (L (mm)) X 2300 (W (mm)) x 1650 (H (mm))
Power driveDiesel / Hydraulic
Mix pumpType 250 centrifugal pump
Mix capacity750 liters per minute
High pressure pump capacity250 liters per minute @ 70 bar
Tank1500 liters
ControlsStainless steel electrical cabinet attached to the unit
Weight1750 kg
Options● Custom tank
● Hydraulic-driven hose reel
● Wireless remote control with;
o Motor speed control
o Pressure indication on display
o Liters per minute indication on display
o Engine start/stop
