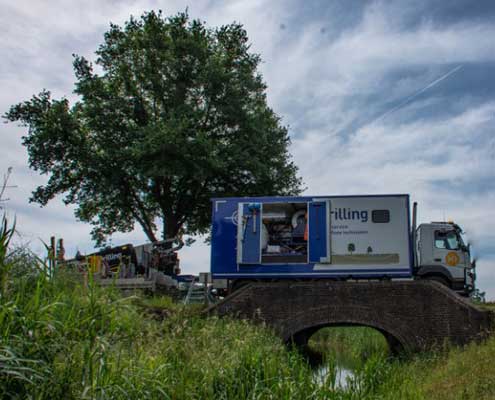

bofram bfm 400 d holland drilling Horizontal Directional Drilling mix pump HDD mud system
bofram bfm 400 d holland drilling Horizontal Directional Drilling mix pump HDD mud system
bofram bfm 400 d holland drilling Horizontal Directional Drilling mix pump HDD mud system

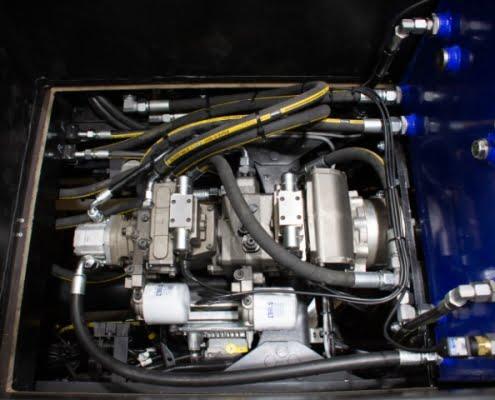

HDD mud system Horizontal Directional Drilling mix unit engine
HDD mud system Horizontal Directional Drilling mix unit engine

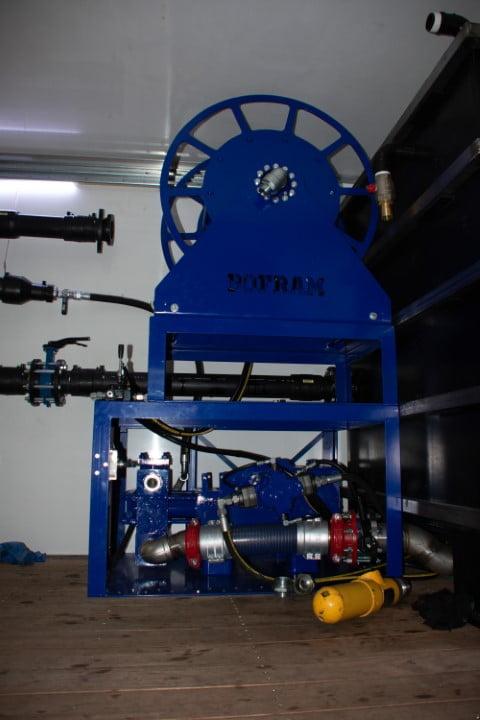

bfm 400 d hose reel HDD mud system
bfm 400 d hose reel HDD mud system

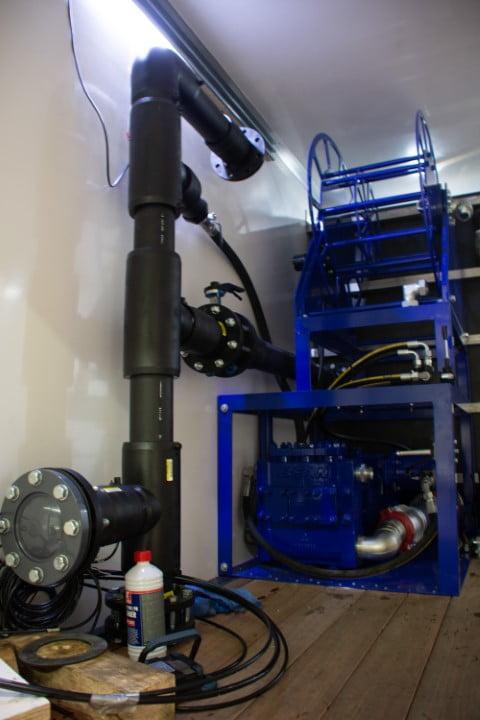

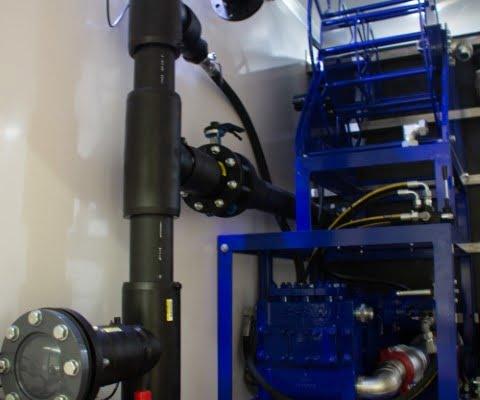

Horizontal Directional Drilling mix pump unit
Horizontal Directional Drilling mix pump unit

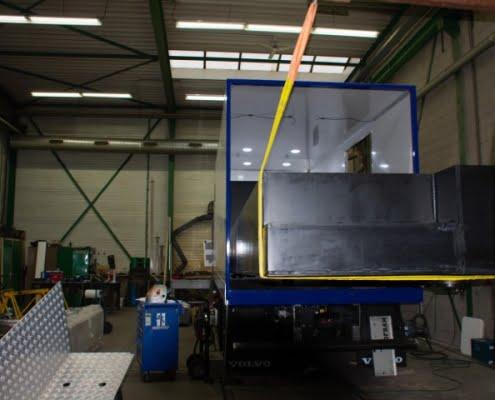

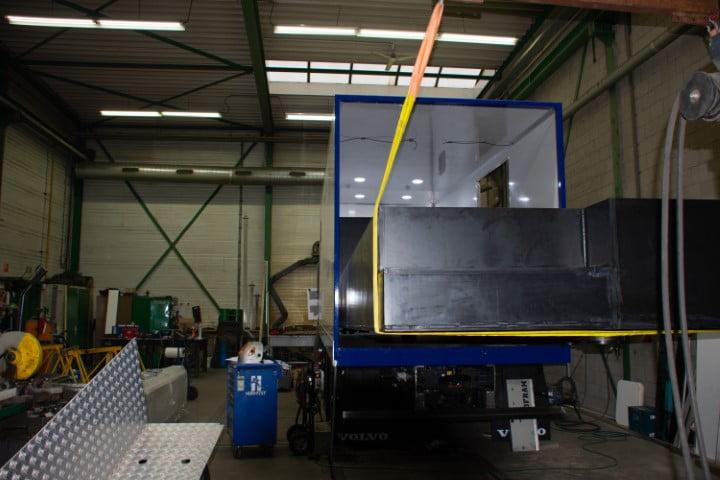

bfm 400 d truck construction watertank trenchless drilling HDD mud system
bfm 400 d truck construction watertank trenchless drilling HDD mud system

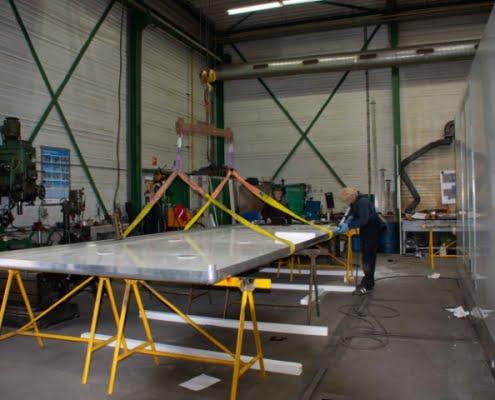

bfm 400 d truck construction trenchless drilling
bfm 400 d truck construction trenchless drilling
bfm 400 d bofram Horizontal Directional Drilling mix truck stairs drilling vehicle
bfm 400 d bofram Horizontal Directional Drilling mix truck stairs drilling vehicle

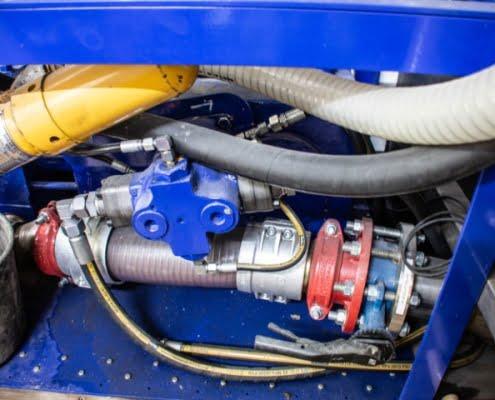

bfm 400 d bofram hdd pumps
bfm 400 d bofram hdd pumps

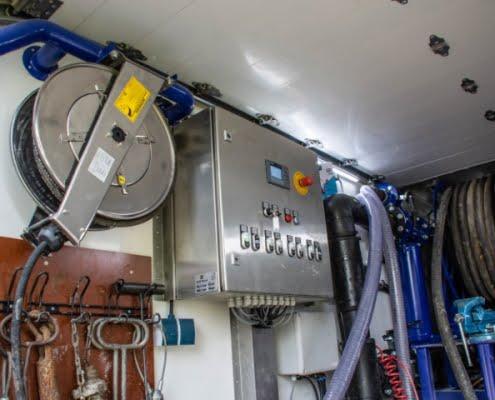

bfm 400 d holland drilling Horizontal Directional Drilling mix pump truck
bfm 400 d holland drilling Horizontal Directional Drilling mix pump truck
bfm 400 d bofram HDD mud system
bfm 400 d bofram HDD mud system
Project

HDD Mud system – BFM 400 D

Request a quote
Download PDF
Framemix and high pressure pump set (truck construction)
Dimensions7000 (L (mm)) X 2500 (W (mm)) x 2750 (H (mm))

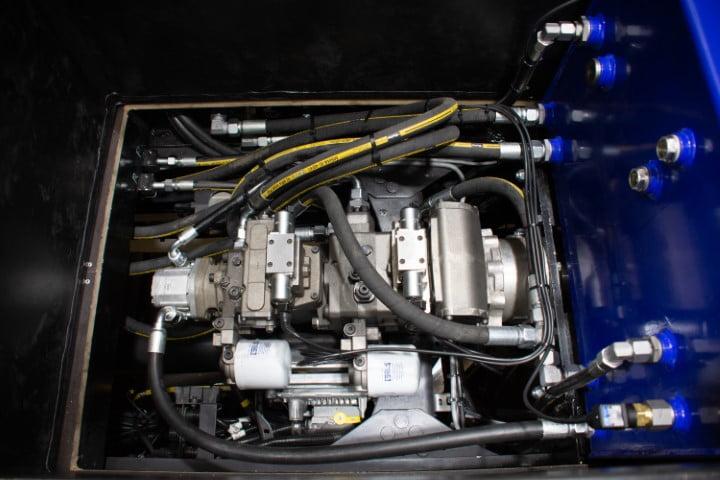

Power driveDiesel / Hydraulic

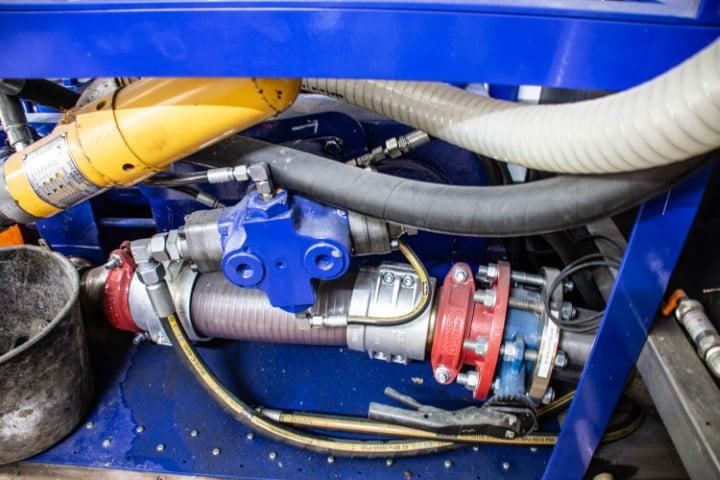

Mix pumpType 250 centrifugal pump
Mix capacity1000-1500 liters per minute
High pressure pump capacity0-400 liters per minute @ 70 bar
TankStock clean water tank 8000 liters
Mix tank 3000 liters

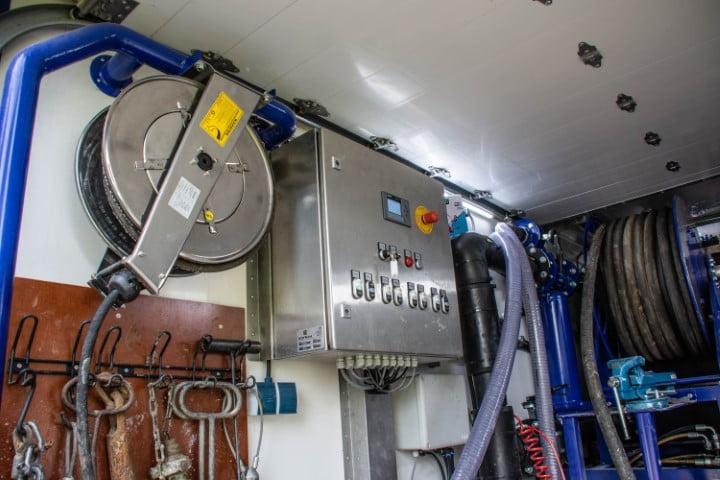

ControlsStainless steel electrical box attached to the unit
Weight1750 kg

Options

  • Custom tank

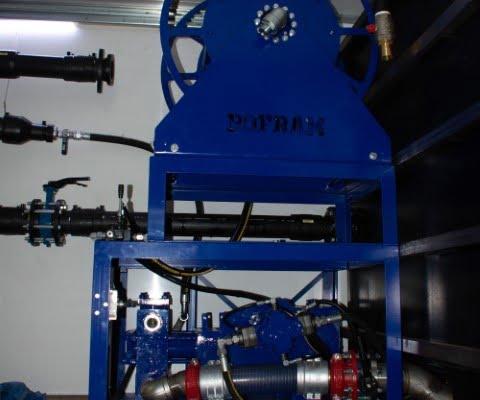

  • Hydraulic-driven hose reel
  • Wireless remote control with;
  • Motor speed control
  • Pressure indication on display
  • Liters per minute indication on display
  • Engine start/stop
  • Cleaning system with reel
  • 230V installation
  • LED lighting
  • Roll shutter instead of doors
  • Atlas Lifting crane to move the drilling tools
  • Vacuum installation to attract the Bentonite
  • Level measurement of tanks
  • Overload protection
  • Roller conveyors for Bentonite stock (2x euro pallet)

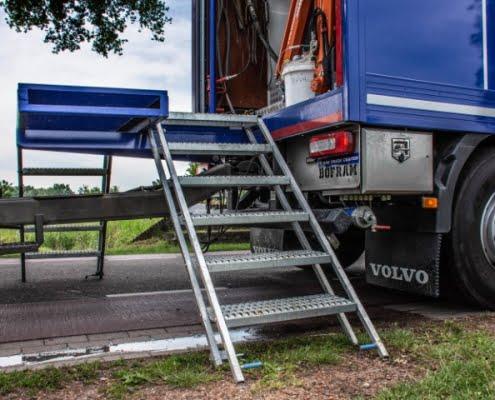

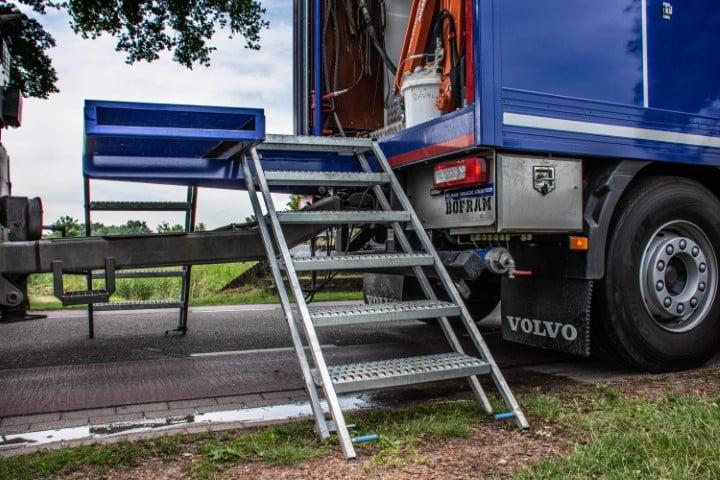

  • Big platform, hydraulic folding, stairs on both sides
  • LED lights all around
  • PTO driven pumps
  • Error code indicator

Your case is our challenge!

With our many years of practical experience in Horizontal Directional Drilling mix, pump, and recycle mud systems, we can empathize with the needs and wishes of you as our customer for each HDD mud system.
