Electric mixing unit

Trenchless drilling

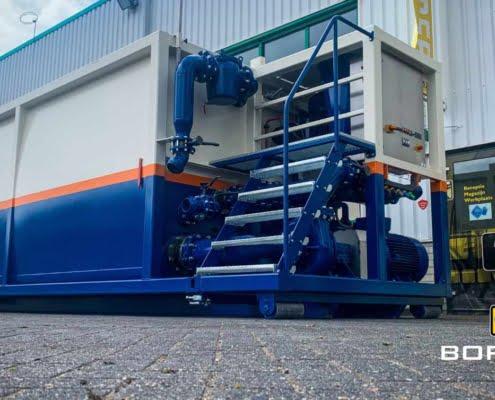

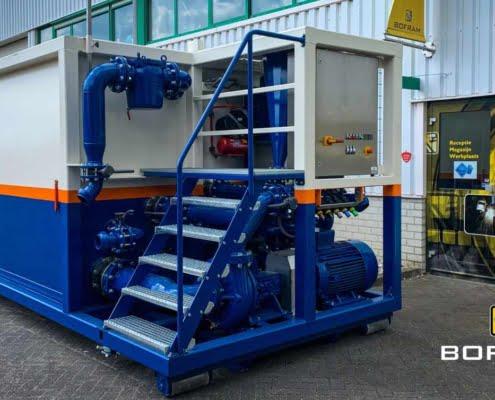

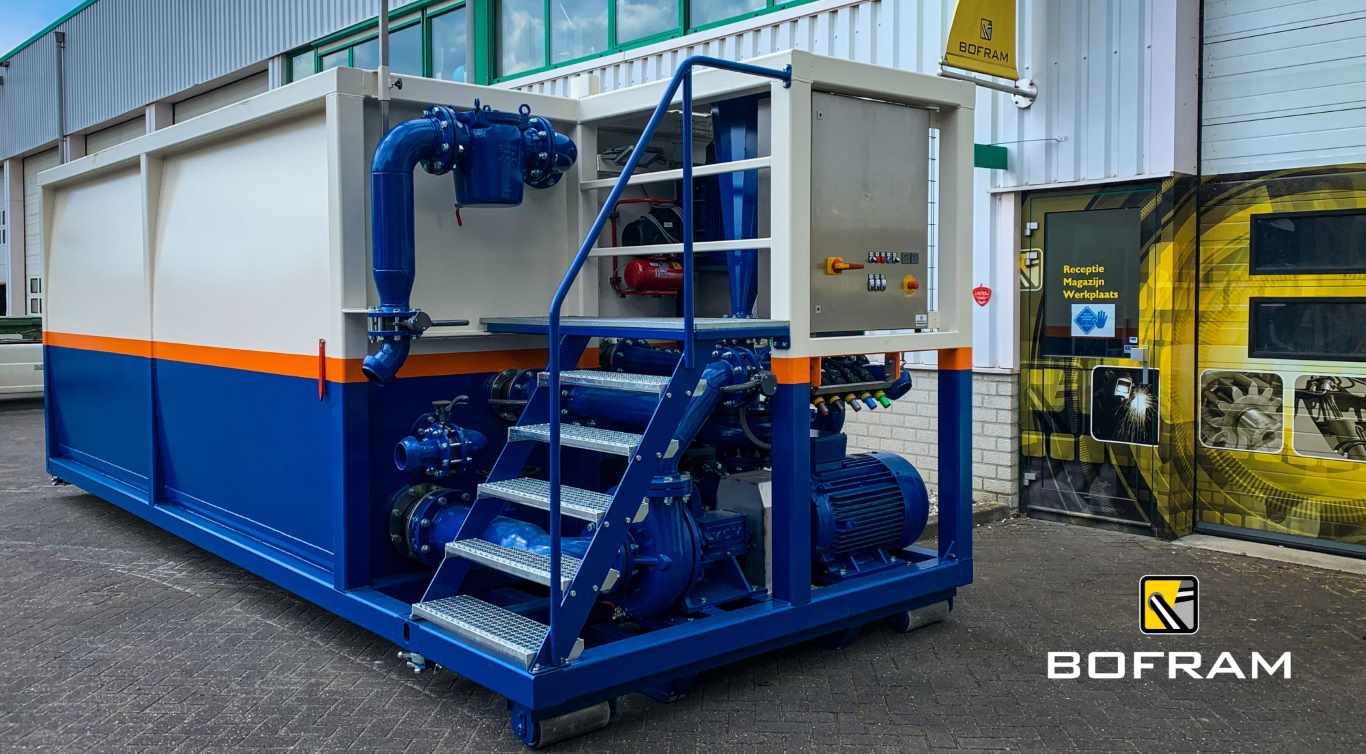

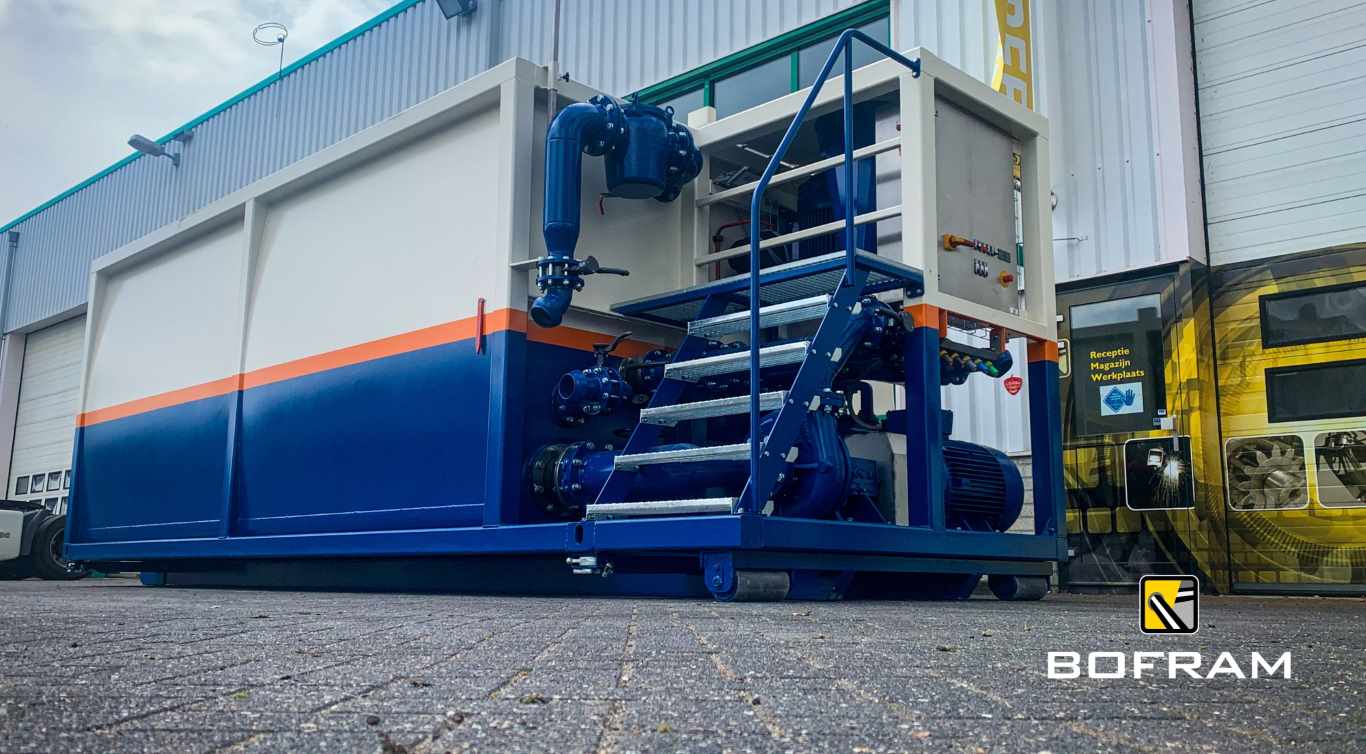

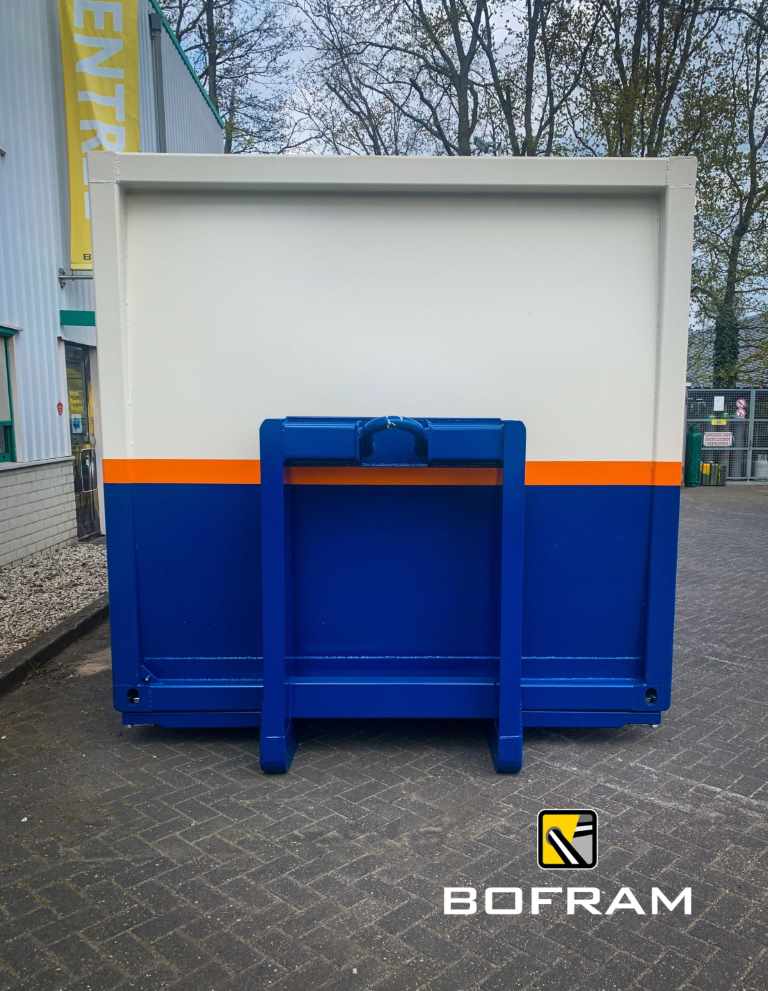

Bofram Techniek has realized a tailor-made electric mixing unit for the trenchless drilling industry. This HDD mix unit is built on a separate hook-lift system which can be disassembled with twist locks. A big bag frame will be mounted on top of the mixing unit so the crane does not have to keep the big bag bentonite permanently above the hopper table. This is safer and the crane can be used for other activities on site. The valves on the HDD machine are easy to operate and the hopper table and associated tasks are easily accessible to perform. In addition, there is also a level measurement indicator that is clearly visible to everyone on site.

Electric-driven

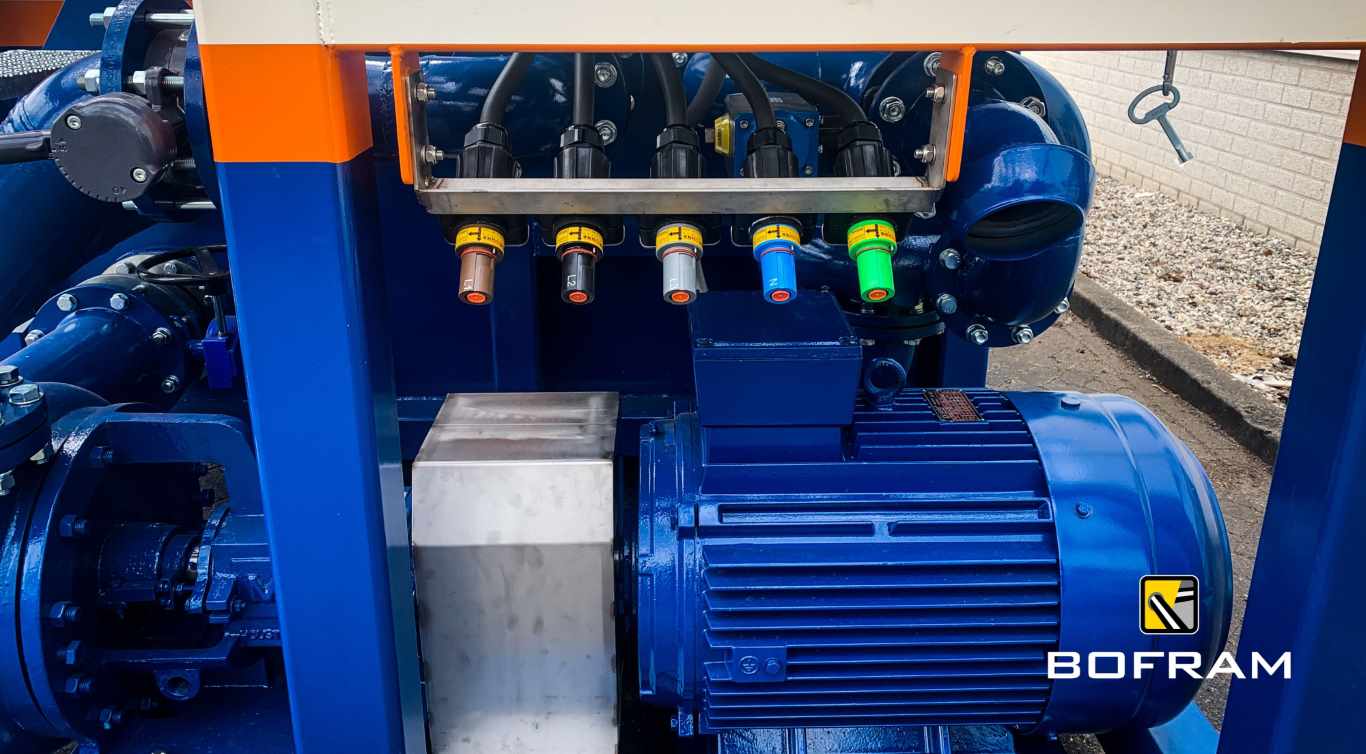

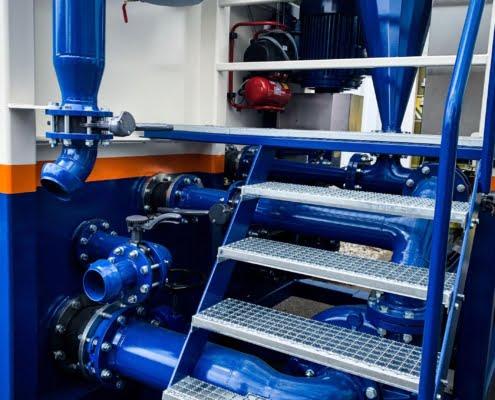

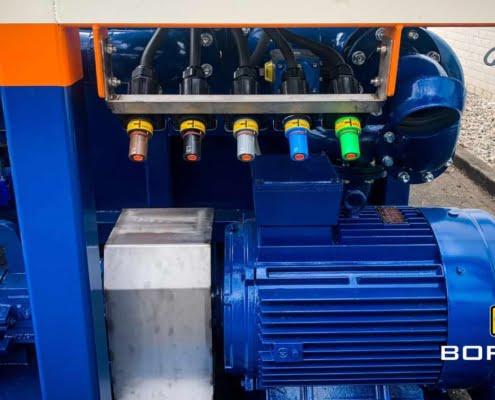

This mixing system is fully electric-driven. The mixing pump has a special impeller, an adapted piping system and a venturi. As such, a large capacity is realized so the mud masters can mix very quickly. Curious how the mix performance of this unit looks like? Then watch the video below! In the end, we show how it performs.

Electrical mix unit
Electrical mix unit
Electrical mix unit
Electrical mix unit
Electrical mix unit
Electrical mix unit
Electrical mix unit
Electrical mix unit
Electrical mix unit
Electrical mix unit
Electrical mix unit
Electrical mix unit
Electrical mix unit
Electrical mix unit
Electrical mix unit
Electrical mix container hdd
Electrical mix container hdd
Electrical mix container hdd
Electrical mix container hdd
Electrical mix container hdd
Electrical mix container hdd
Electrical mix container hdd
Electrical mix container hdd
Electrical mix container hdd
Electrical mix container hdd
Electrical mix container hdd
Electrical mix container hdd
Electrical mix container hdd
Electrical mix container hdd
Electrical mix container hdd
Electrical mix container hdd

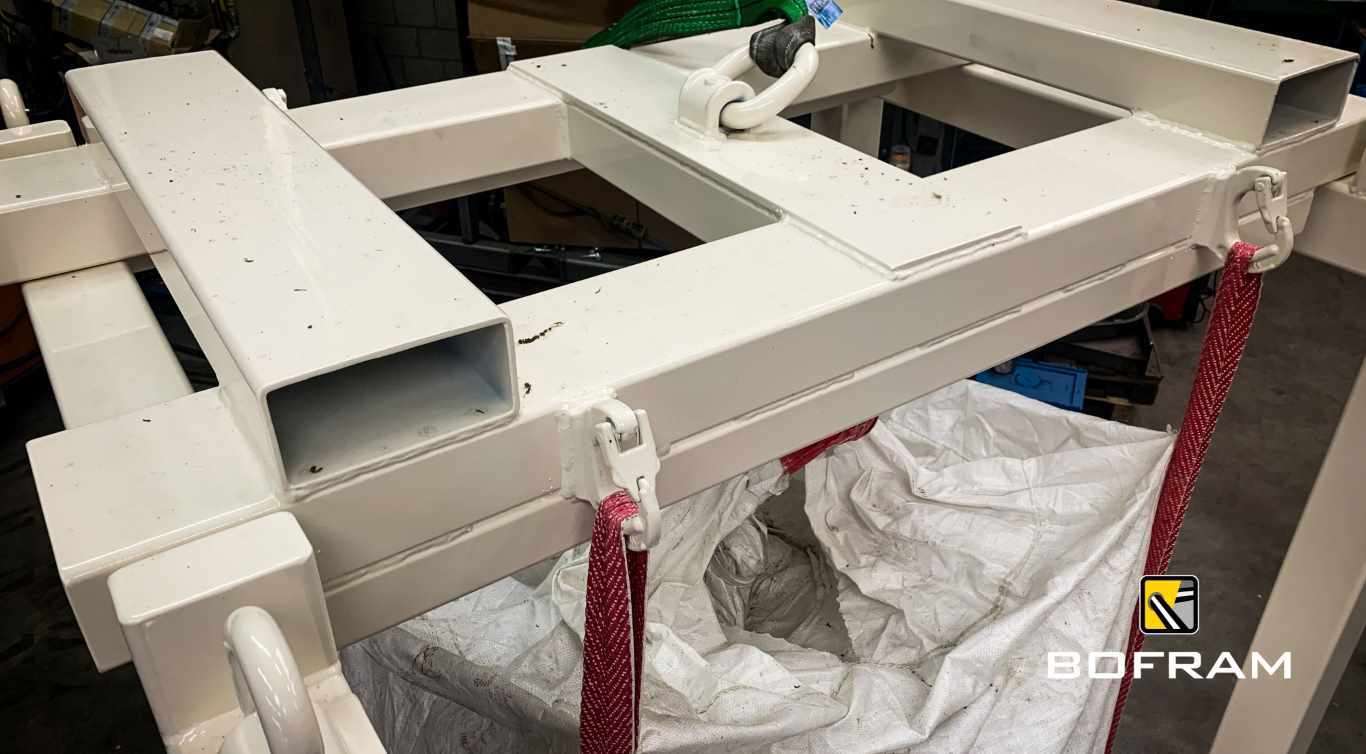

bigbag frame hdd
bigbag frame hdd
bigbag frame hdd
bigbag frame hdd

Your case is our challenge!

Are you looking for custom horizontal directional drilling equipment? Please feel free to contact us and meet our engineers to talk about your specific wishes.

Contact us

Ergonomics

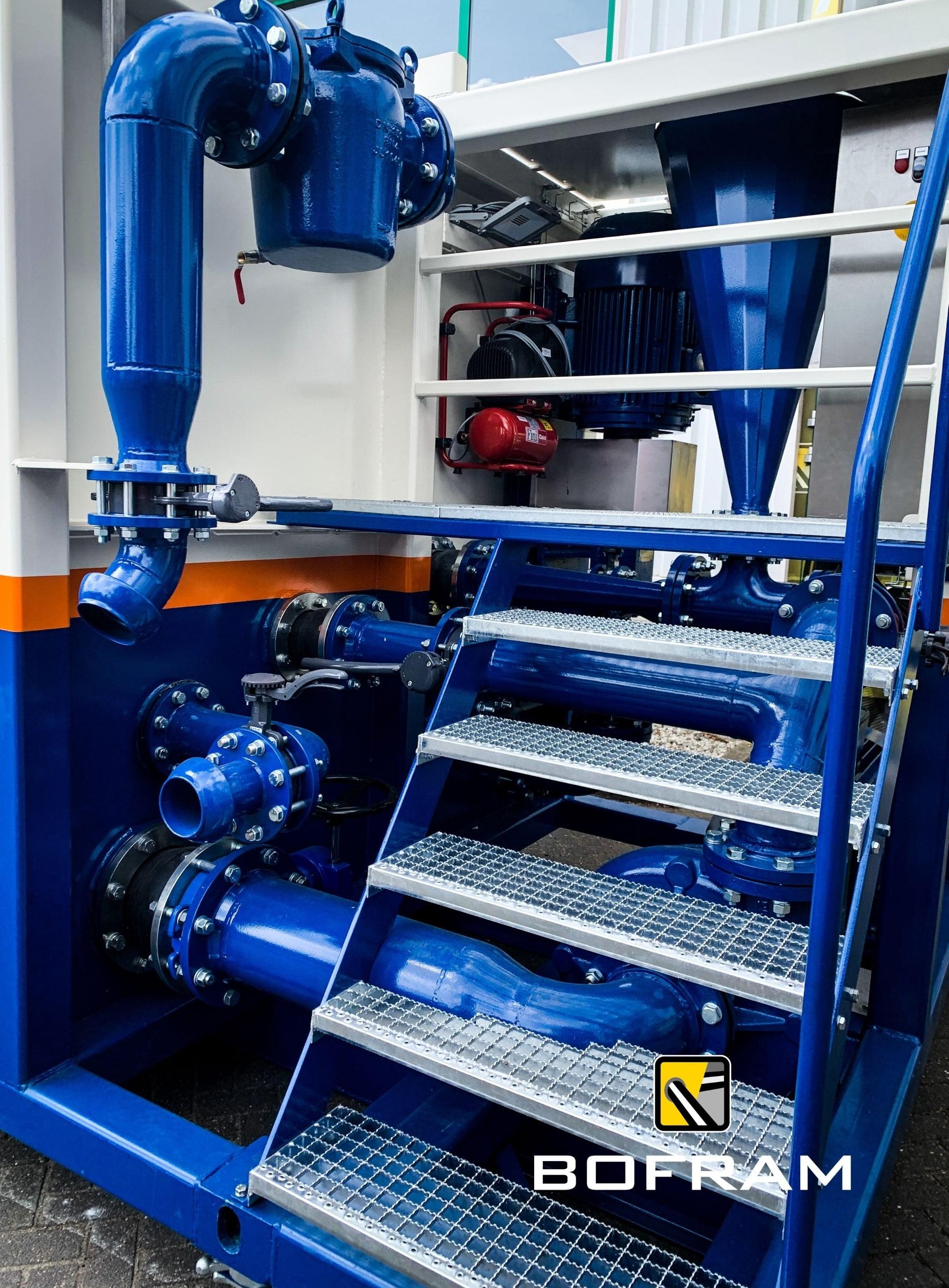

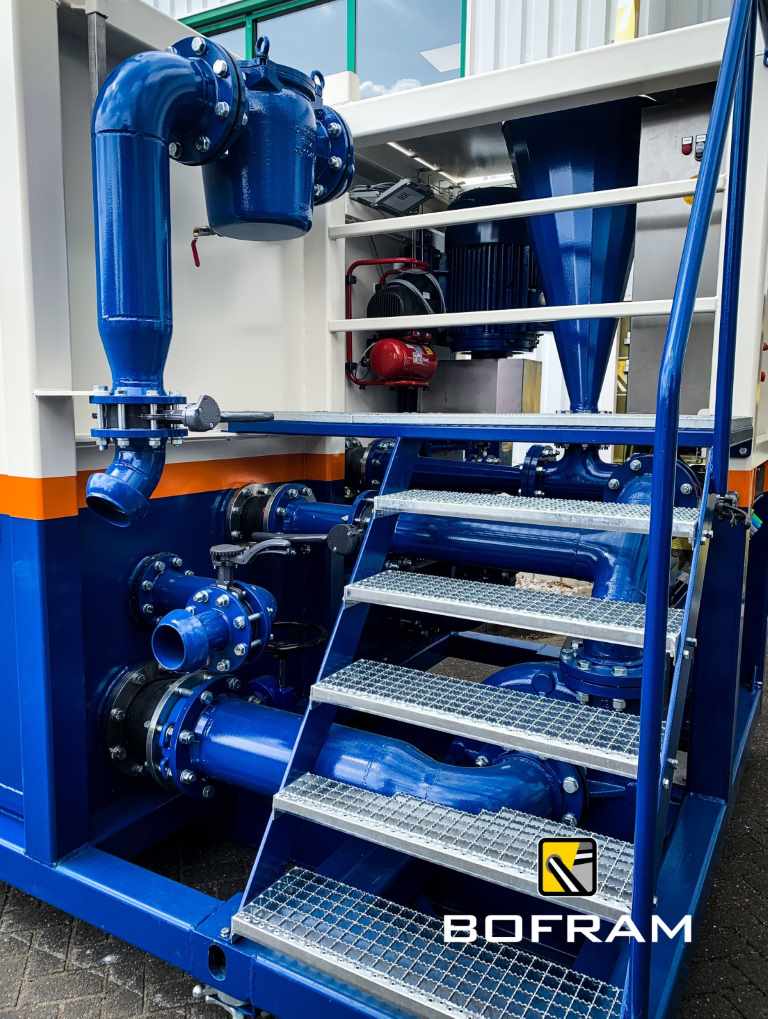

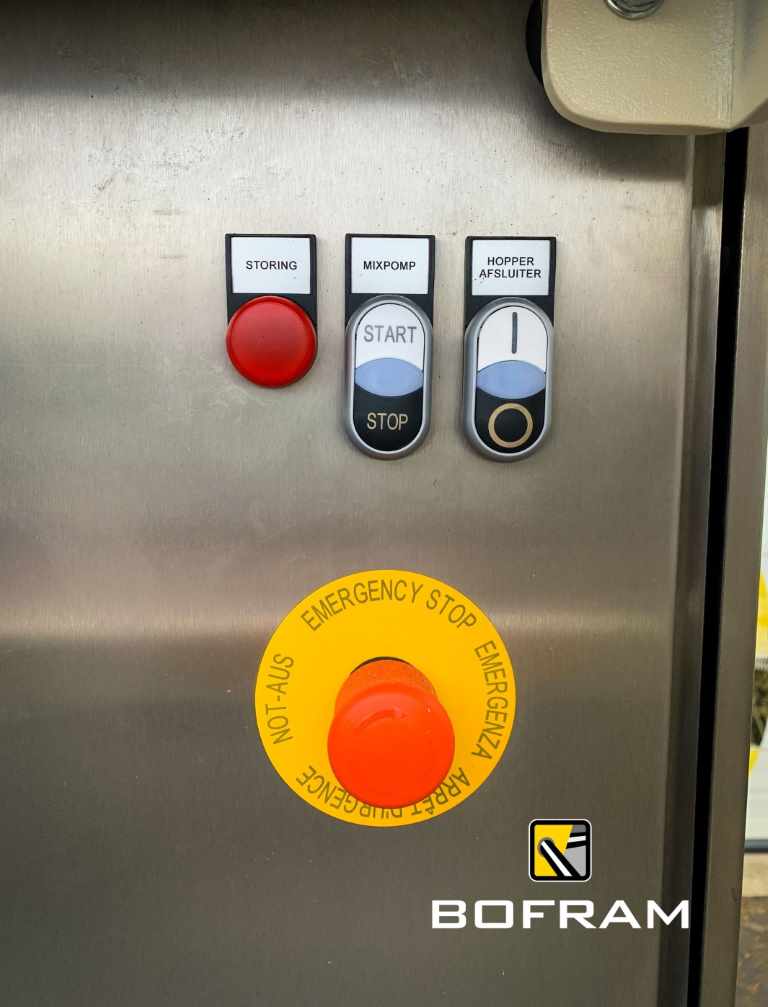

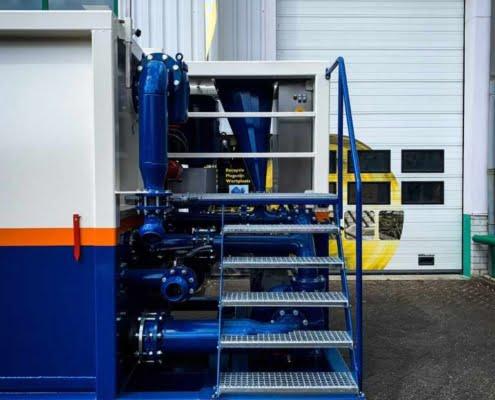

This mixing unit is designed to contribute to the ergonomics of the mud master. Jos explains in the video that the hopper table is easily accessible via the stairs with everything within reach. The mud master can operate the valve from his position with a button, he or she can easily reach the water filter, and the bentonite can be controlled from there.

We wish Volker Stevin Materieel a lot of fun with their new mixing unit!

Interested?

Interested in a custom electric mix installation? Feel free to contact us to discuss your wishes and the possibilities.

Specifications mixing unit:

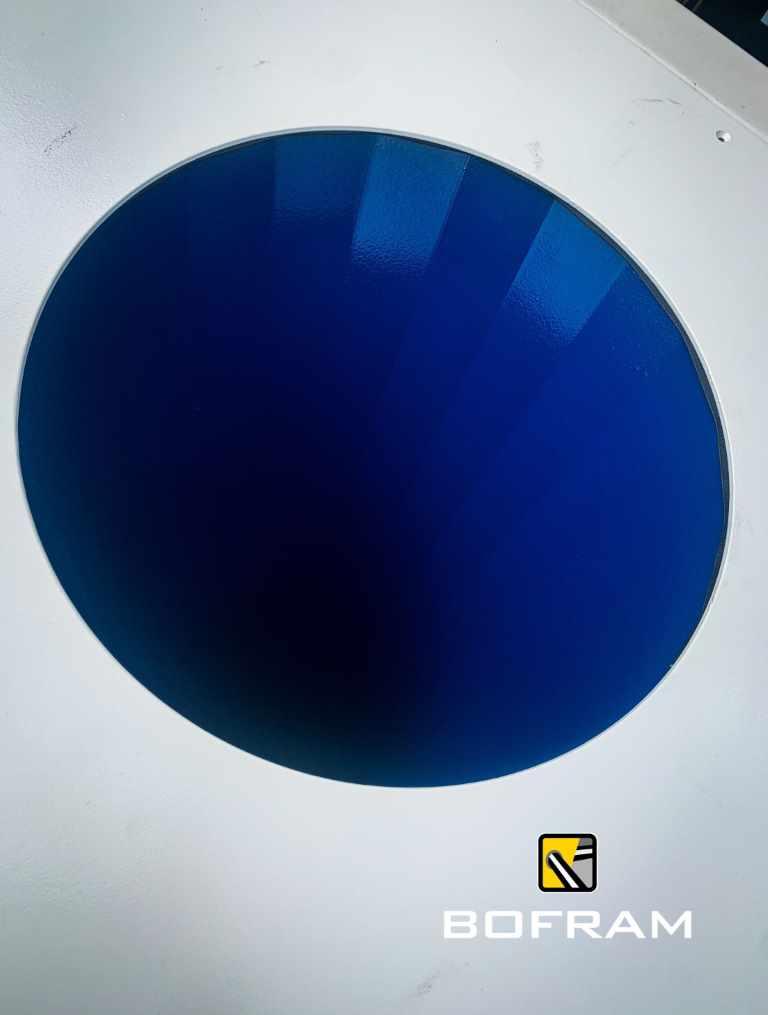

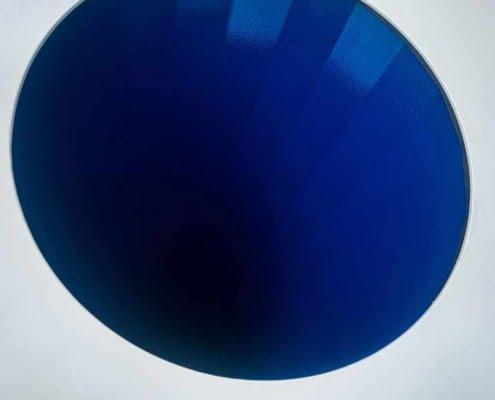

  • Lowered drain point
  • Lowered suction point for pumps
  • Convex side walls (light in weight), open version

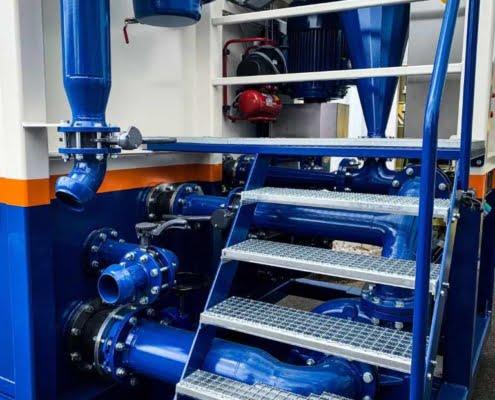

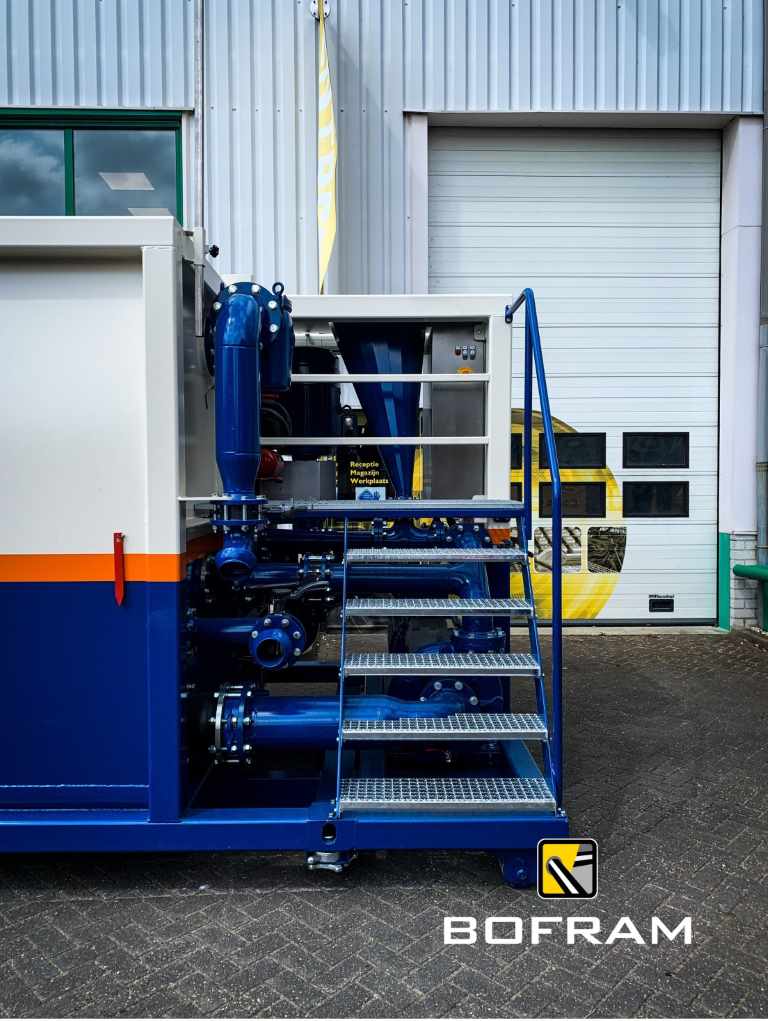

  • Stairs: 1 x external (fixed staircase) and 1 x internal in tank

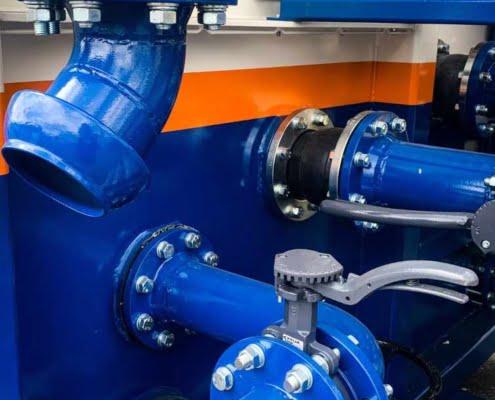

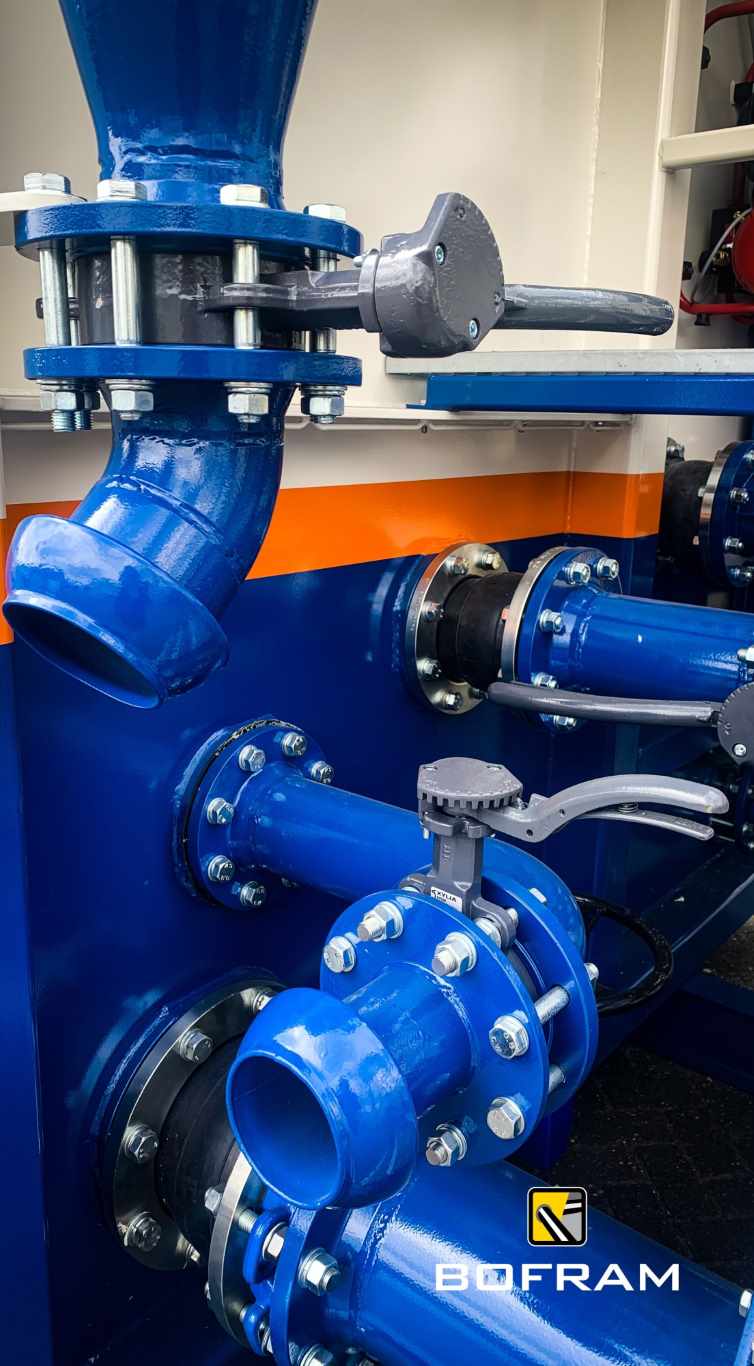

  • 2 x mixing pipe PE version with 2 x 8 pcs Eductors, for fast riping Bentonite
  • Various connections to customer’s wishes
  • Hopper table suitable for BigBag use
  • Special venturi for fast intake of Bentonite powder

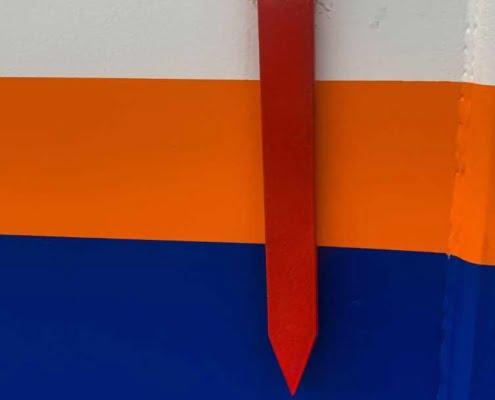

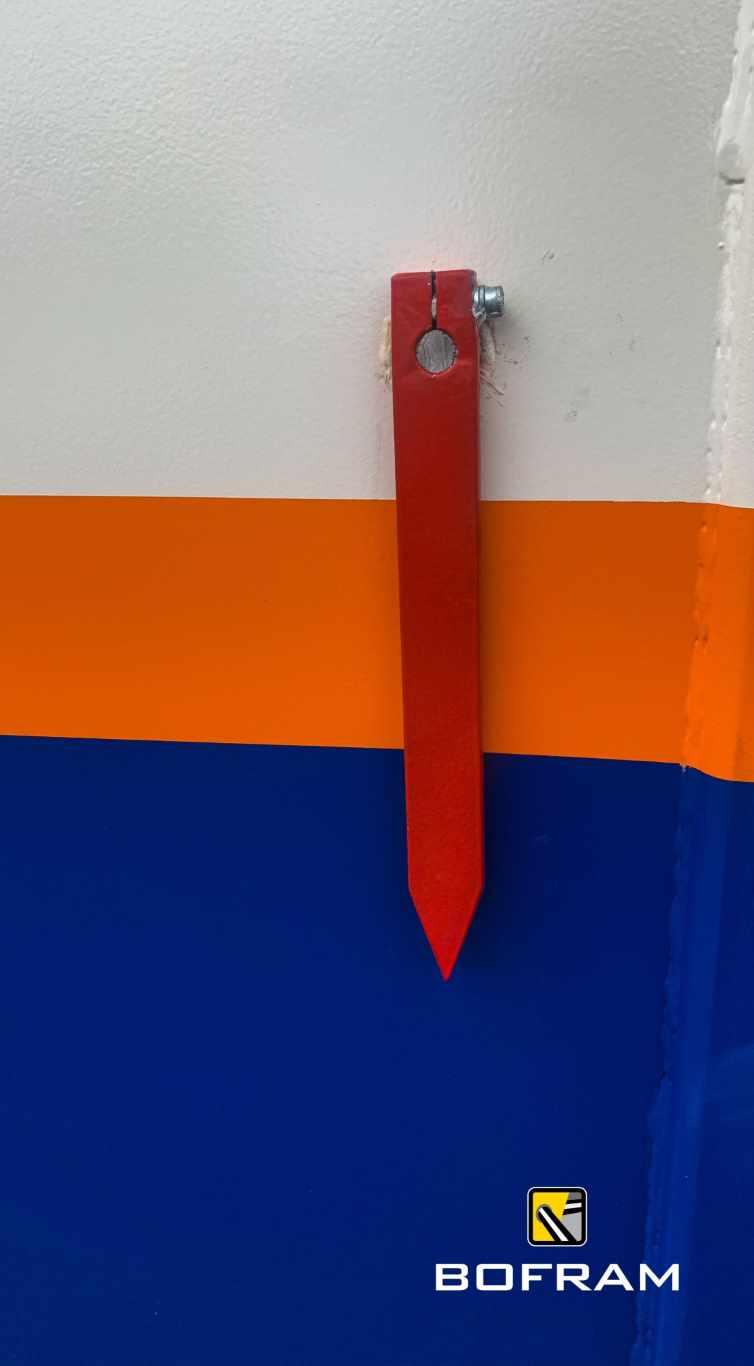

  • Float type level measurement, the pointer on the side of the container, 2-sided
  • Recycle mud connection according to customer’s requirements

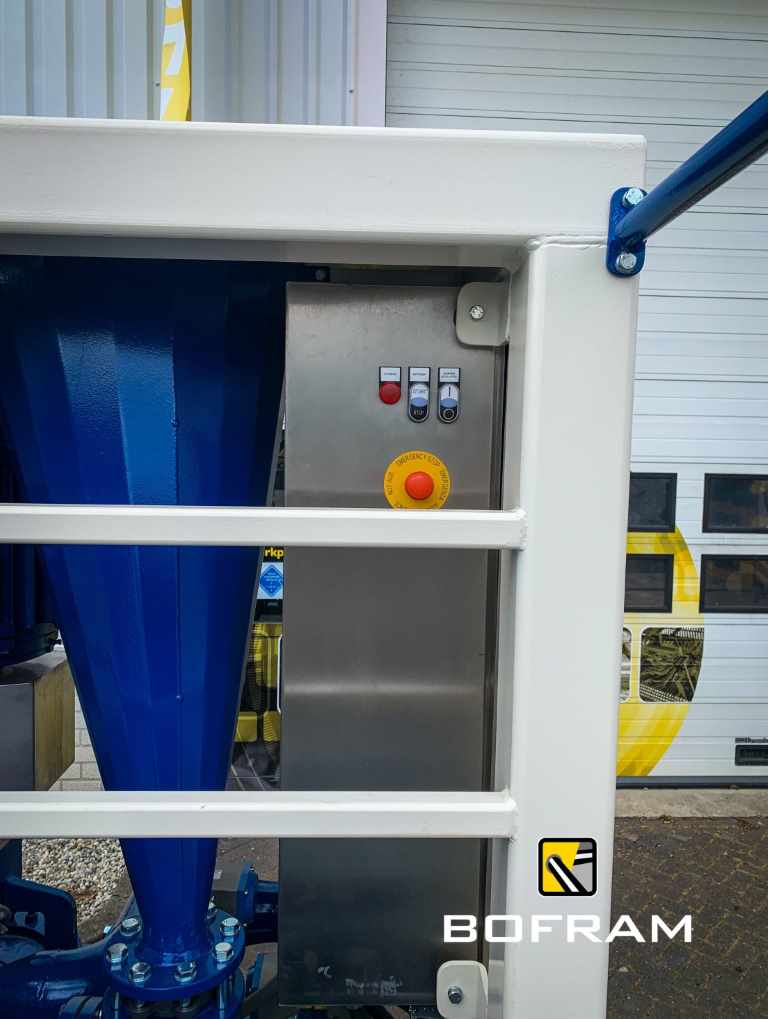

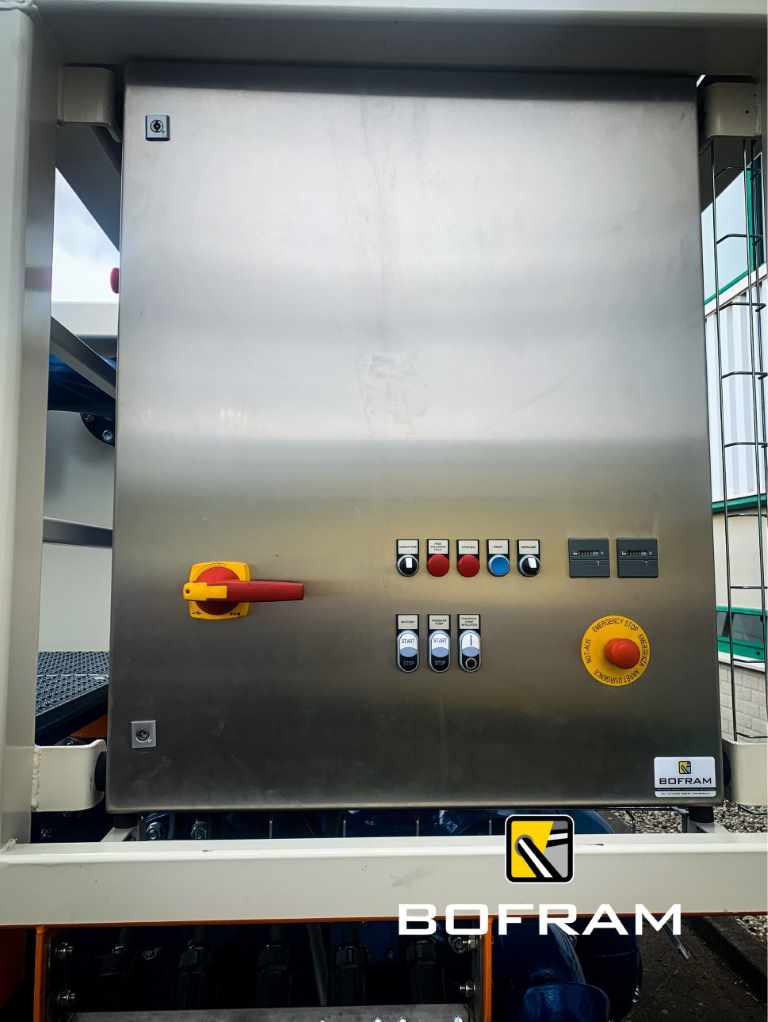

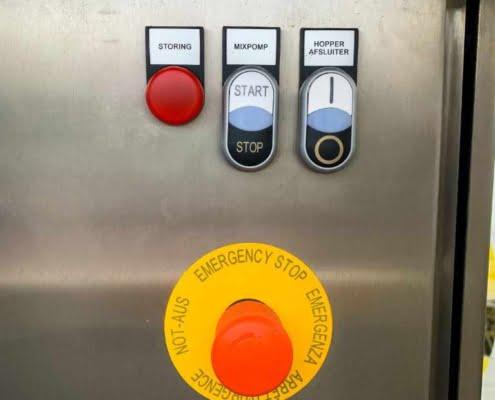

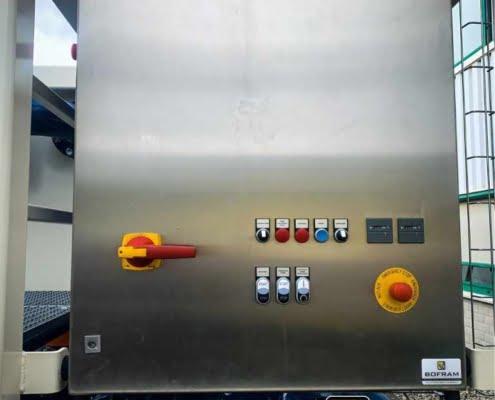

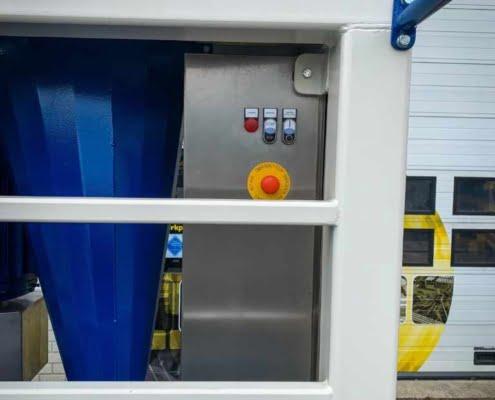

  • Stainless steel control box (at hopper table)
  • Conservation: blasted primer and 2K topcoat (inside and outside) or scooping and lacquering
  • Piping carried out in PE where possible

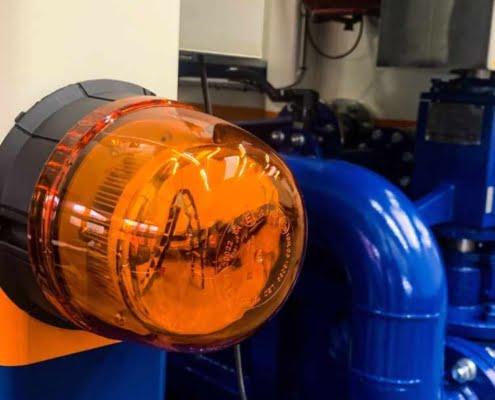

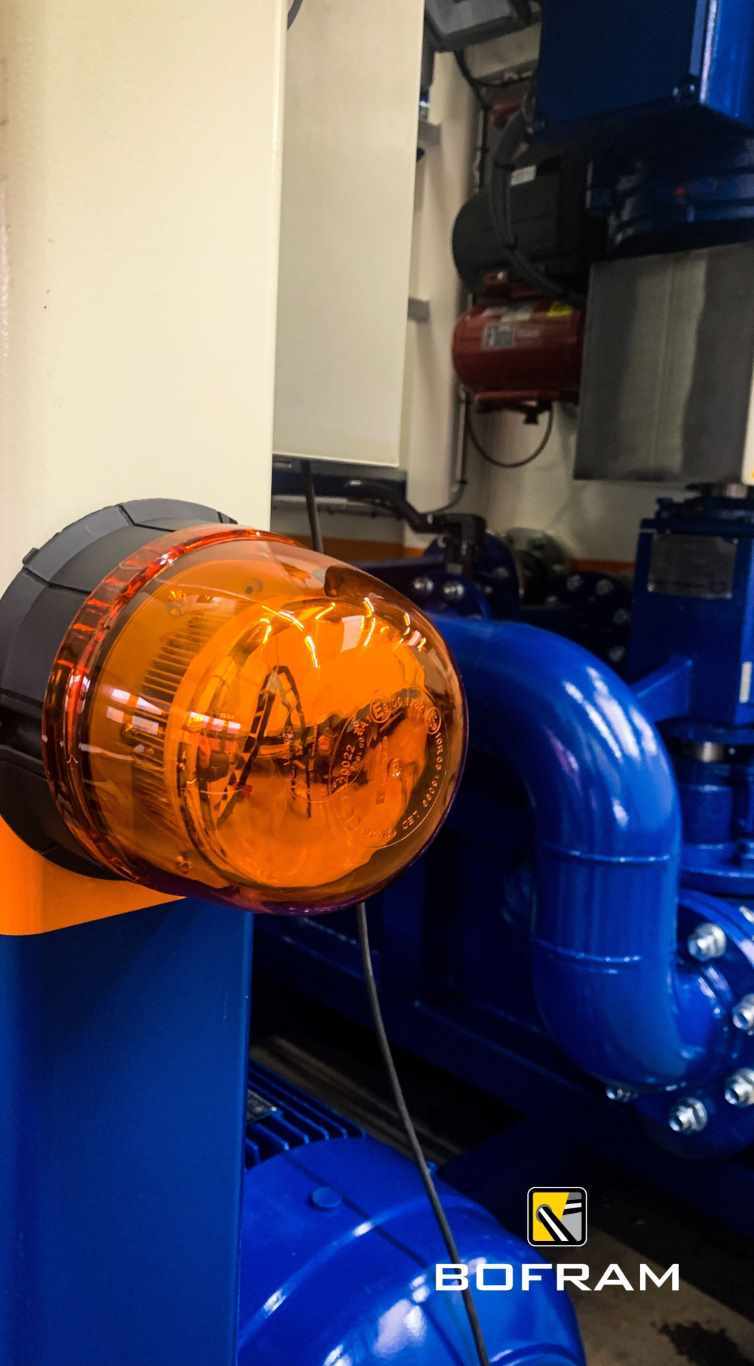

  • Worklights: 1 x set up at hopper table 1 x at mix pump
  • Steel coarse water filter, easy to clean
  • Valve control via remote control

Extra options:

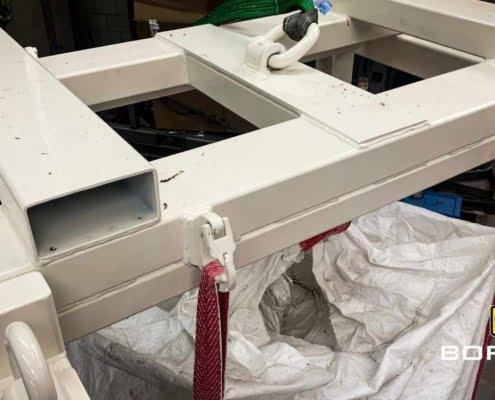

  • 2 x steel frame for big bag suspension on top of the hopper table
  • Extra transfer pump 37 KW incl. Control and motor switches
  • Remote control with pneumatic valve (faster reaction time), on pre-pressure pipe

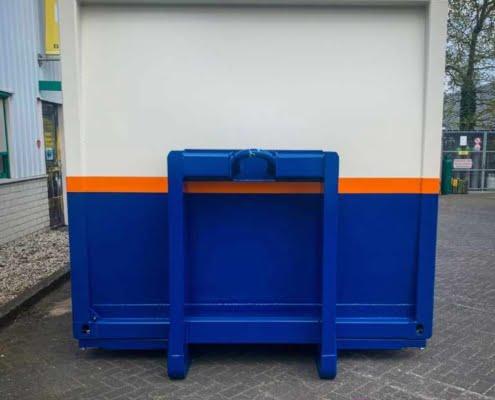

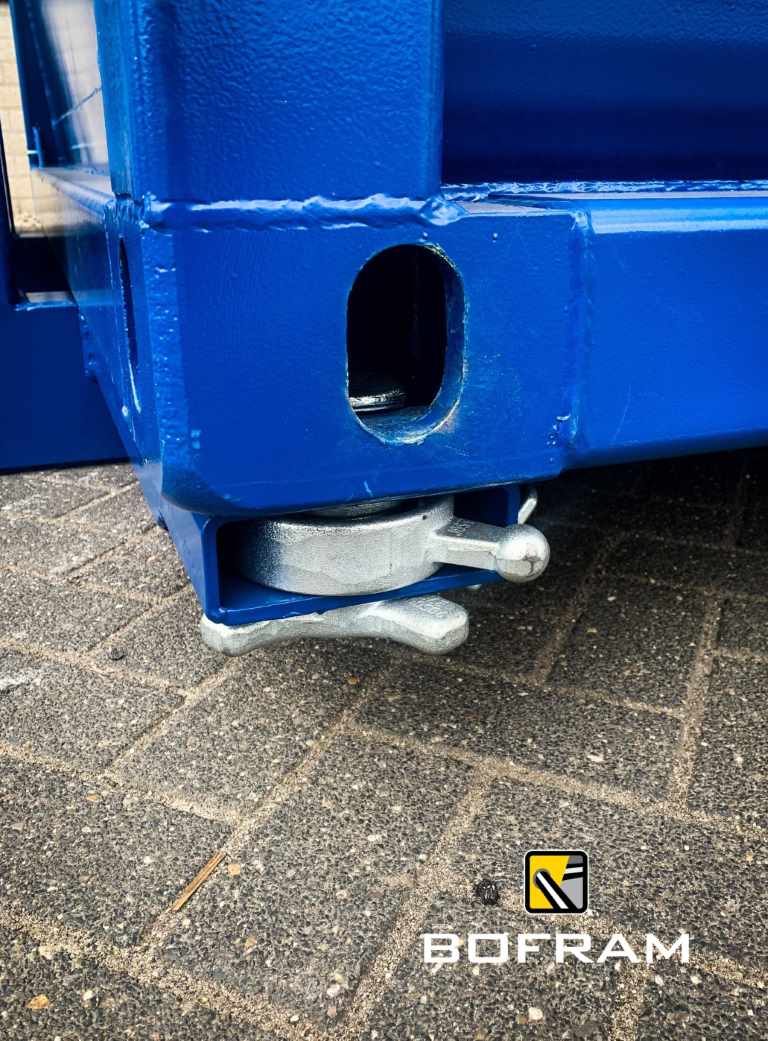

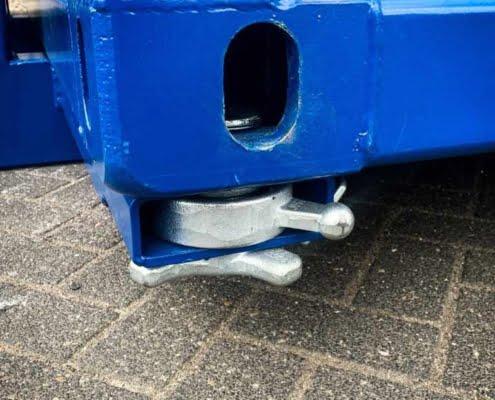

  • Bottom frame hook system permanent or with twist locks

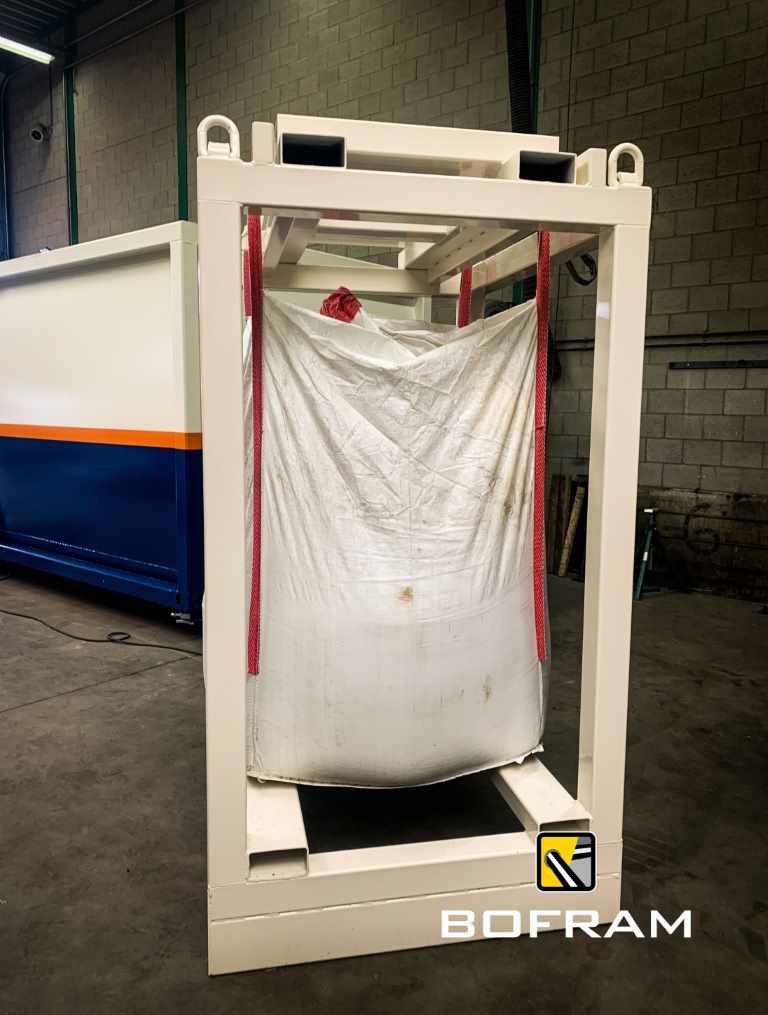

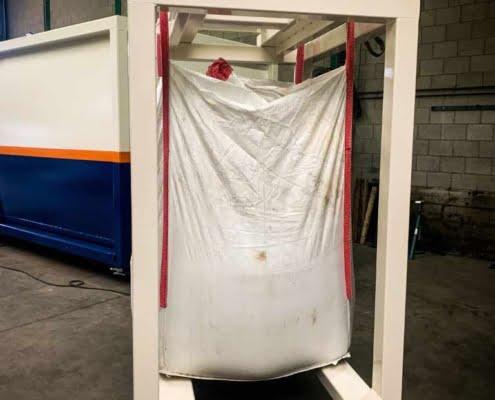

  • Big bag frame 2 x for above hopper table, incl. Permanent set-up option. Frame height to wishes of the customer.
  • Signal tower for level measurement tank
  • Special impeller in mix pump for faster maturation Bentonite (shear effect)
  • Valve control with signal from the drill
Drilling truck and HDD mix unitmix Pump set unit PTO 250Lmoll-ombouw-diesel-engine-to-electric-drive2HDD mix unit from Diesel engine to Electric driven
