What is bentonite?


Bentonite has been discovered in Fort Benton in the United States. It can have different colors, like white, grey, red-white, brown-white, and light yellow. It is often used in the form of clay; bought in the form of a powder and then mixed with water, so it becomes clay. Within this clay, you can find very small particles that allow bentonite to make the ground waterproof. Another property of bentonite is its high viscosity. This makes bentonite resistant to deformation by shear stress. Other properties of this type of clay are rheological properties, absorption properties, and a thixotropic property. The first one means that it becomes viscous in combination with water. The second one allows bentonite to absorb liquids. And the third one allows the solution to acquire the characteristics of a gel, which makes it easy to deform and move.

What is bentonite used for?

Bentonite is widely used in civil engineering. It can be very useful as drilling fluid. In addition, it is often used on contaminated sites to isolate the site together with a diaphragm wall. Furthermore, this type of clay is used in a litter box, because it has an absorbent effect when it comes in contact with urine. Further applications of bentonite can be found in metal foundries, wine clarification, and the improvement of sandy soils in agriculture.

Bentonite and Horizontal Directional Drilling (HDD)

Within the Horizontal Directional Drilling (HDD) industry, underground pipes and tubes are constructed or repaired with the use of horizontal drillings. The main advantage of this technique is that the road does not have to be deconstructed to realize the drilling and it is possible to drill underneath a river. To perform this horizontal drilling, you need a bentonite mixture. This is mainly used to keep the borehole open and to transport the soil or sand from the borehole to the surface. A bentonite mixture can be thick or thin. The thin mixture is mainly used for sandy soils, so a bigger amount of sand can be transported to the beginning or end of the borehole. When drilling in gravel soils, a thicker mixture is applied. This looks like a kind of gel and is useful to keep the gravel in the borehole on the side, so you create a kind of solid hole. In addition, the thicker solution is used as a kind of lubricant to allow the steel tubes to slide through the soil up to 2-3 kilometers.

Bofram Techniek

At Bofram we make the mix, pump, and recycle units needed to mix the bentonite powder with water to create the right mixture and apply it to the horizontal directional drillings. Our machines are completely drawn in 3D in order to make maximum use of the available installation space. For example, when the mix, pump and recycle machine has to be placed in an HDD drilling vehicle. By using a well-thought-out mix of techniques and an optimal design of the tanks, a bentonite solution can be mixed in a short period of time. You can then quickly and efficiently start executing horizontal directional drillings.

Are you interested?

Please contact us!

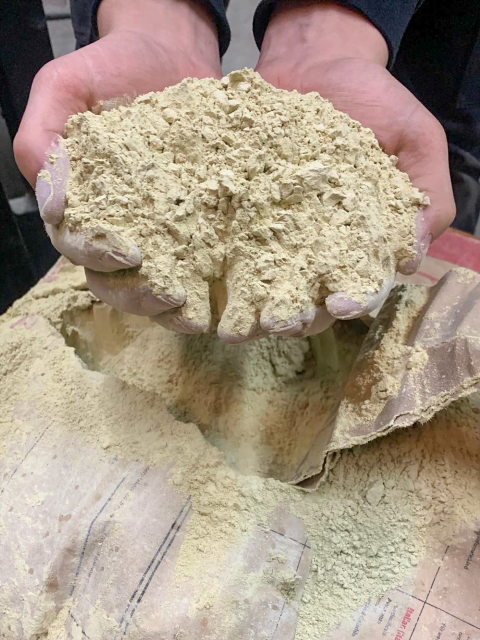

Bofram wat is bentonite powder hdd
