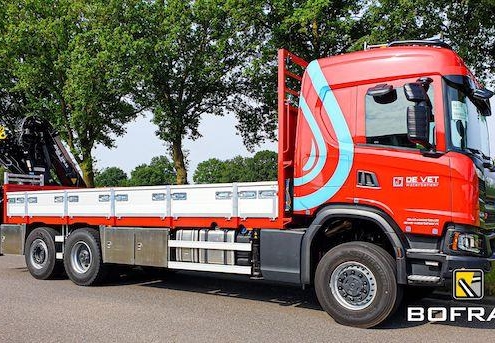

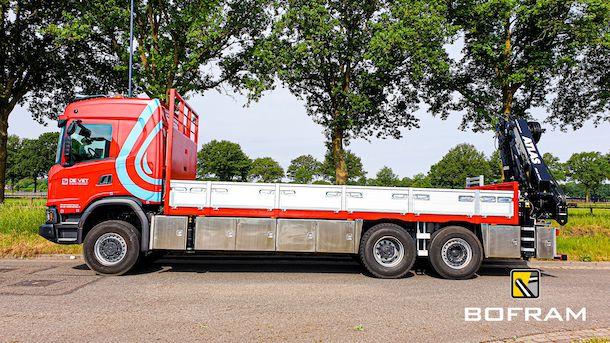

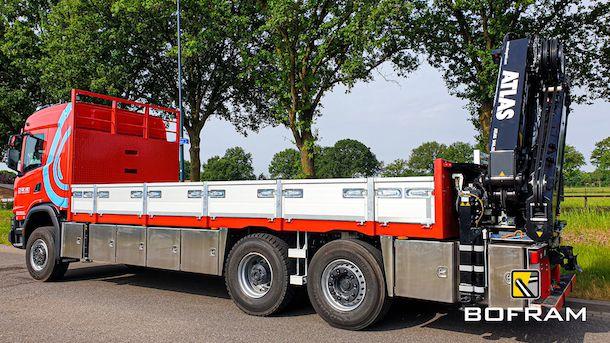

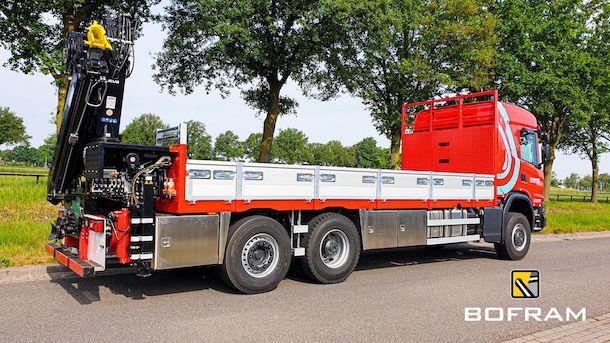

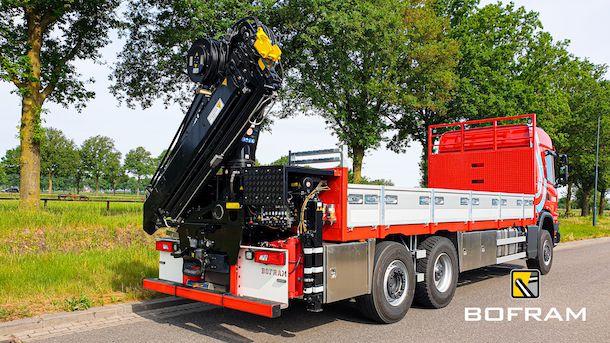

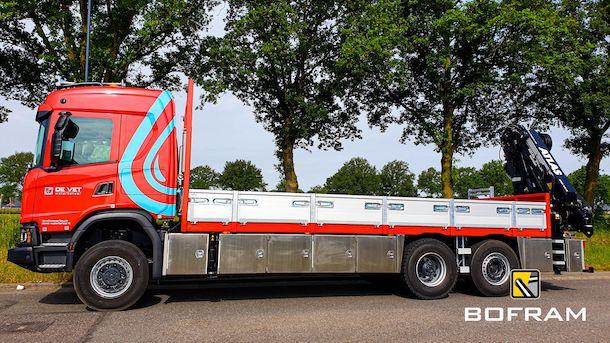

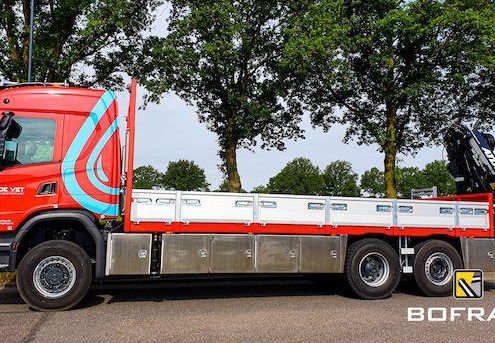

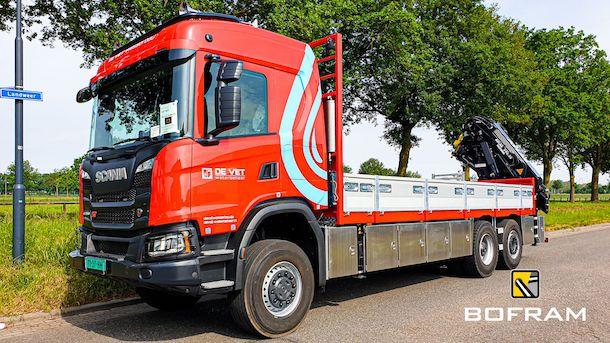

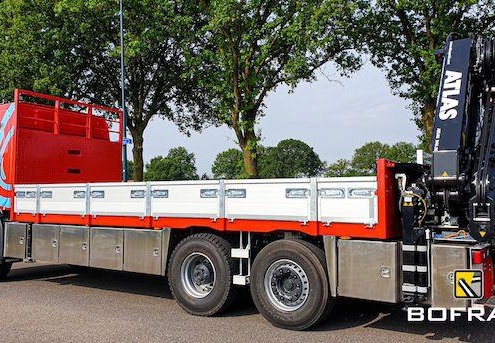

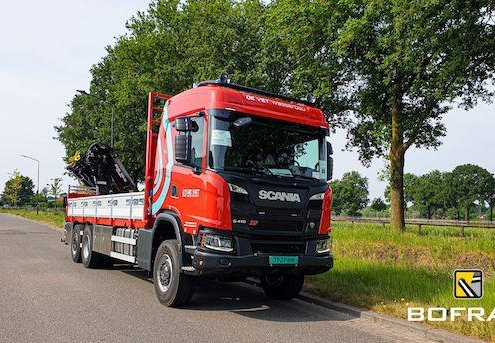

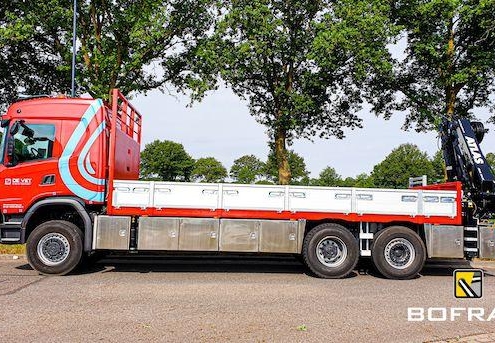

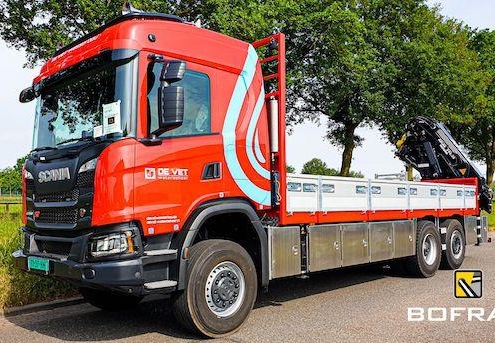

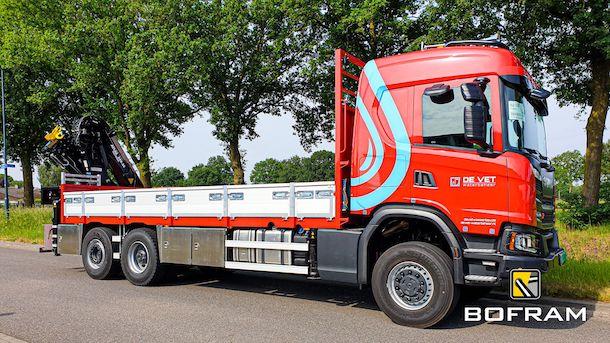

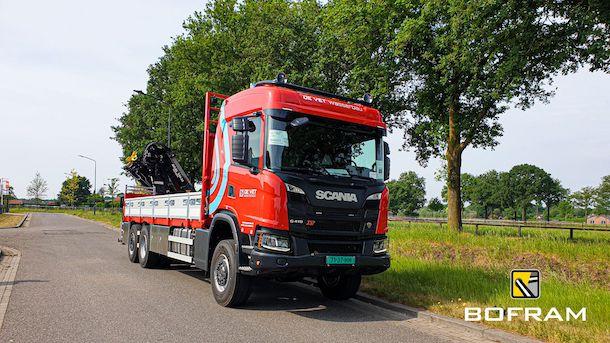

Atlas truck-mounted crane with loading bed

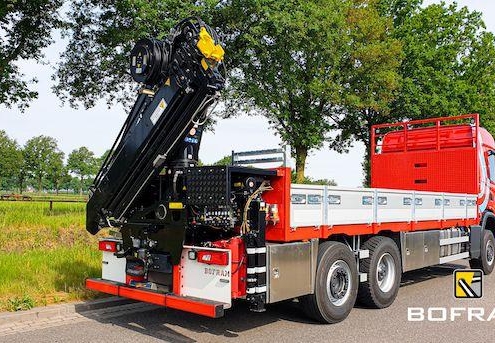

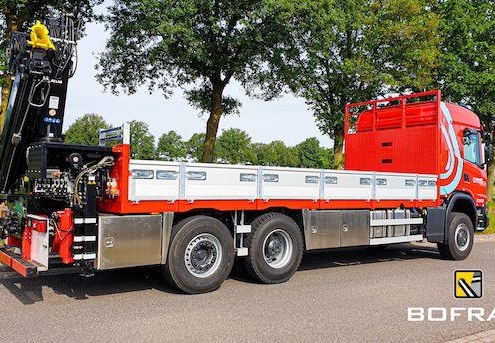

Atlas truck-mounted crane

An Atlas 240.2E/A4 truck-mounted crane with two hydraulic functions was selected for this configuration. This crane has a lifting capacity of 212 kN/m and a swing range of 410 degrees. Combined with a maximum hydraulic boom reach of 12.31 meters, this makes the crane extremely versatile!

Some standard features of this Atlas truck-mounted crane:

• Two hydraulic outriggers
• Knee-lever system on the lift and articulation cylinders
• Hydraulic retraction system on the extension/retraction cylinders
• High working height close to the crane
• Crane column with internal routing of all hydraulic hoses
• Three-point suspension
• Large piston diameter on the lift, boom swing, and slewing cylinders
• Proportional and precise control
• Throttle valves on the lift and boom swing cylinders
• Hydraulically controlled load-holding valves
• Hard-chromed piston rods
• Return filter and fine filter
• Maximum height warning
• Radio-controlled remote operation

Atlas truck-mounted crane superstructure compliant with CE directives

The crane is manufactured in accordance with European CE Directives 89/392/EEC and 91/386, NBN E 52001-010, and EN 12999. In addition, it is equipped with an Atlas SLC (Security Load Control) system. This automatically locks the system in the event of an overload combined with movements that increase the risk of a fall. The Atlas ACM (Atlas Crane Management) system provides full electronic safety protection for all functions and the ability to read out a numeric code in the event of a malfunction. Third, the crane is also equipped with a visual LMB indicator, a digital hour meter, and an emergency stop button at each operator station.
